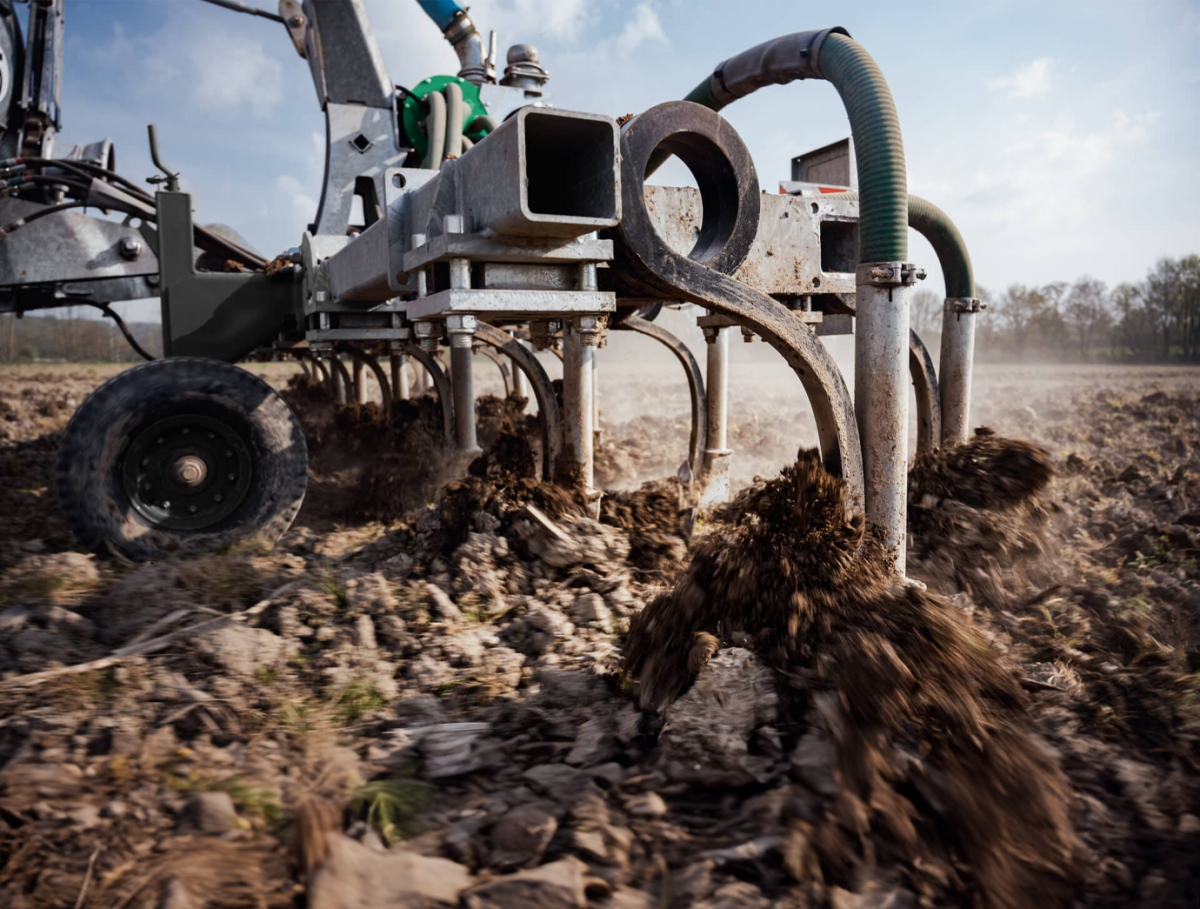

Pichon EL61 Tine Injector
The strength of this model is, without a doubt, that it can work the soil and spread slurry at the same time. This tine incorporator is ideal for deep soil preparation, and it is used to restart ploughing and stubble braking.
The soil is prepared to accommodate new seeding. This technique optimises the fertiliser’s efficiency without any nitrogen loss via volatilisation or overflowing. The tines are supplied with liquid by the vertical macerator for optimum transverse distribution.
Features & Benefits
The EL61 will meet your requirements with:
- Maximum value out of organic fertiliser
- No nitrogen loss through volatilisation and run-off
- No odours to the local environment and surrounding areas
- Increase of spreading surfaces
- Soil preparation for new seeding period
- Efficient promotion of soil growth
- Facilitates the decomposition of plant debris
- Easy passage over harvest residue
Specifications
| EL61 - 3m | EL61 - 4m | EL61 - 5m | EL61 - 6m | |
| Working width (m) | 3 | 4 | 5 | 6 |
| Transport width (m) | 2.95 | 2.95 | 2.95 | 2.95 |
| Number of tines | 7 | 9 | 11 | 13 |
| Space between tines (cm) | 45 | 45 | 45 | 45 |
| Traction power (hp/m) | 20 | 20 | 20 | 20 |
