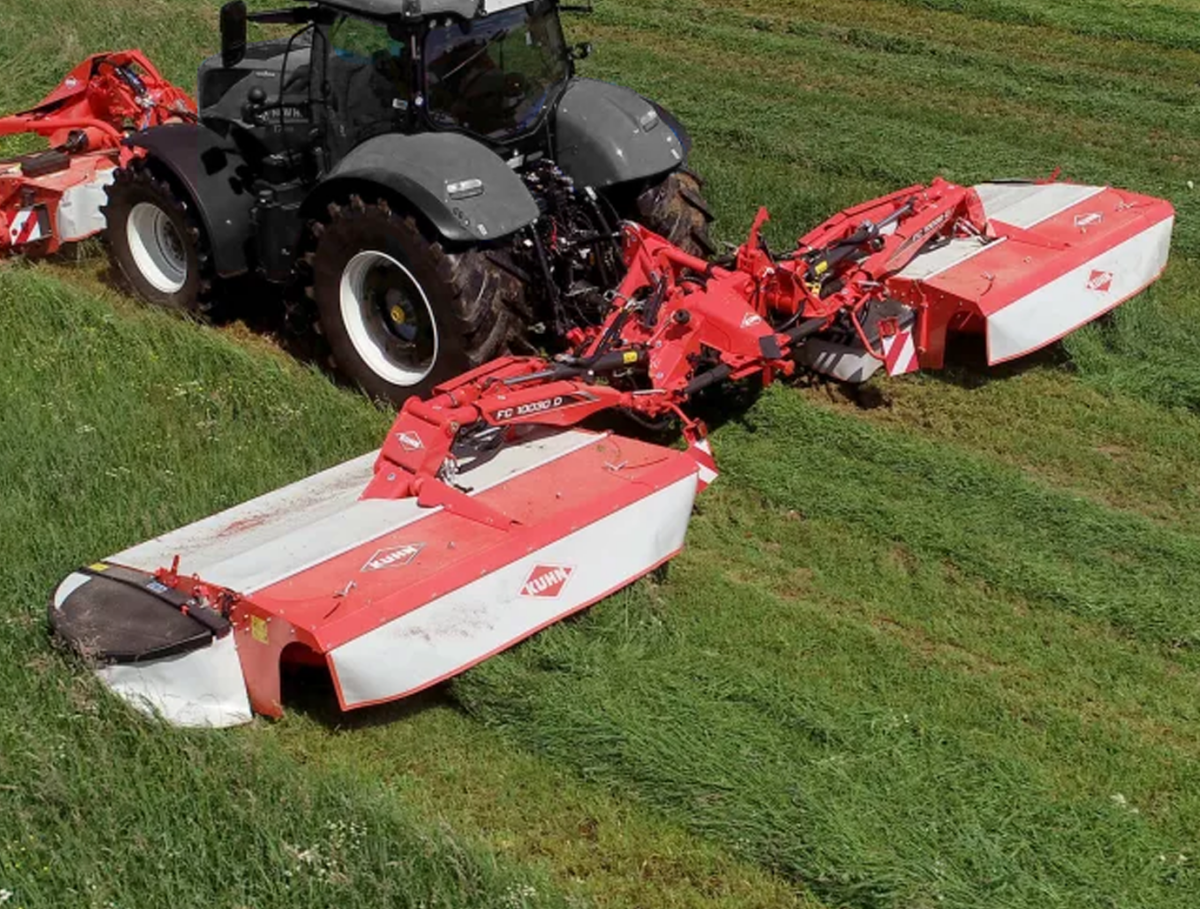

KUHN FC 1030 Disc Mower Conditioner

Areas to mow are increasingly becoming larger while optimal mowing periods are becoming more limited. What about the forage quality?

You can count on the performance, quality of work and reliability of the KUHN FC range. FC triple gang mowers help you to reach your goals in terms of output and quality - without compromise within those ever-decreasing weather windows.

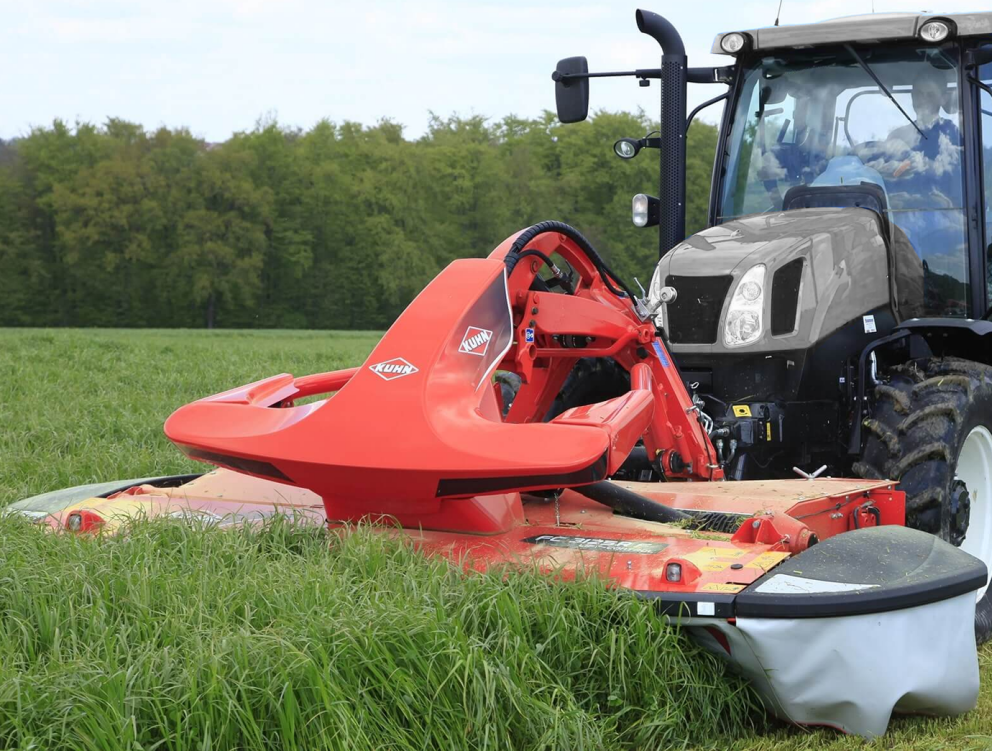

FC triple gang mowers are available in three versions, designed for tractors from 120 hp: FC 8730 (8.33 to 8.73 m); FC 9530 (9.13 to 9.53 m); FC 10030 (9.53 to 9.93 m). Attach a FC 3125 F or a FC 3525 F at the front of the tractor to benefit from the same exceptional Kuhn output as the rear unit.

Features & Benefits

Ensure maximum output without compromise on the quality of the harvested forage. These mower conditioners are intended for contractors, machinery cooperatives and large farms.

Follow nearly all ground contours, with pendulum type articulation, hydraulic side offset of 20 cm, vertical offset of nearly 50 cm, and angular range of approximately 20° with an overlap of 50 cm.
In the event of a very violent impact, pre-defined shearing grooves protect the gear wheels and ensures the machine is quickly (within 15 minutes) back up and running at a low repair cost.
The 540 mm rotor with pivoting steel fingers offers exceptional conditioning capacity.

Specifications

	FC3115 D	FC3515 D
Working width (m)	3.10	3.50
Transport height (m)	3.43	3.79
Number of disks	7	8
Average swath width (m)	1.45 – 2.10	1.85 – 2.40
PTO speed (rpm)	1000	1000
