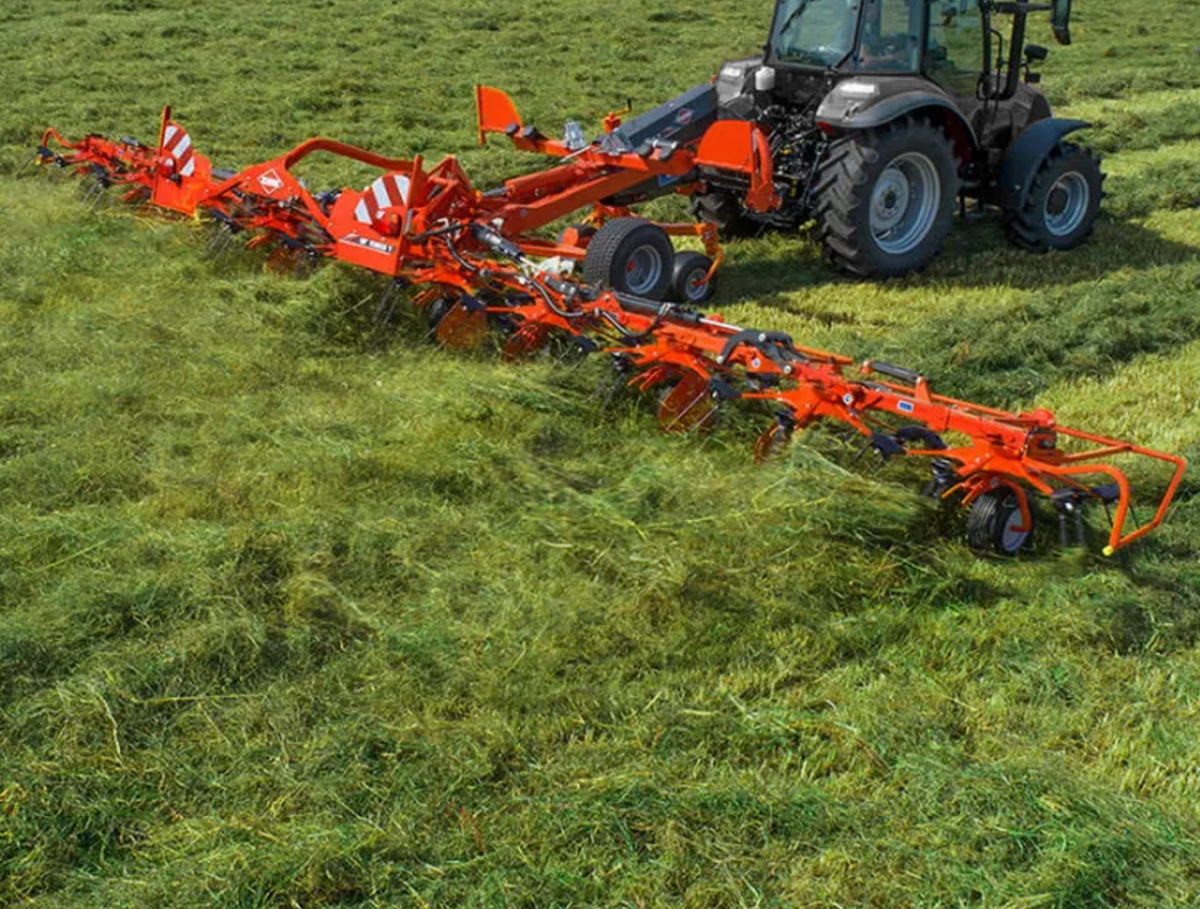

KUHN GF 1003 T Trailed Gyrotedders
GF 8703 T and GF 10803 T tedders are models with 8 and 10 small rotors respectively and working widths of 8.70 m and 10.80 m. Narrow plots and points are no trouble for these trailed tedders thanks to their HLC rotor-lift system HLC (Headland Lift Control). Simply activate the valve to lift all rotors to minimum 50 cm from the ground, in less than 5 seconds.
These machines are equipped with the same tried-and-tested components that have made KUHN tedders the must-have tool, in terms of forage quality and compact design, for many years.
Features & Benefits
On the road, comfort is absolute. One of the best transport compactness on the market for the GF 8703 T and GF 10803 T. Extremely manoeuvrable, making it even easier to get around. The 3-point linkage and transport wheels provide the necessary weight transfer between machine and tractor when lifting rotors to pass over windrows or for folding/unfolding. Easy handling thanks to large transport wheels (300 mm), positioned close to the machine's pivot point. This ensures that the machine reacts quickly when driving on bends, making driving easier.
- The heavy-duty tines mounted on this new rotor have a service life that is doubled compared to standard models. A prong diameter of 10 mm and 4 large diameter coils (80 mm) contribute to a strong reduction in tine fatigue without altering the flexibility they need for work. Tedding quality is preserved while internal stresses and constraints on the tines are reduced in heavy forage.
- For long or short, wet or dry crops, tine angle is adjusted near the wheel supports, with no tools required. Always remember that a wide angle reduces drying time and increases the nutritional content in the forage.
- Durable rotor gearboxes-Guidance is by large double-row angular ball bearings. Thoroughly sealed rotor gearbox prevents lubricant leakage and the introduction of impurities. The attachment system to the rectangular frame is robust, with spacers housing long connecting screws. With these rotor gearboxes, greasing is limited to a relatively few pivot points. Spend more time in the field and less on maintenance!
Specifications
| GF 8703 T | GF 10803 T | |
| Working width DIN (m) | 8.70 | 10.80 |
| Overall width in working position (m) | 9.12 | 11.20 |
| Number of rotors | 8 | 10 |
| 6Number of tine arms per rotor | 6 | 6 |
| Transport width (m) | 2.99 | 2.99 |
