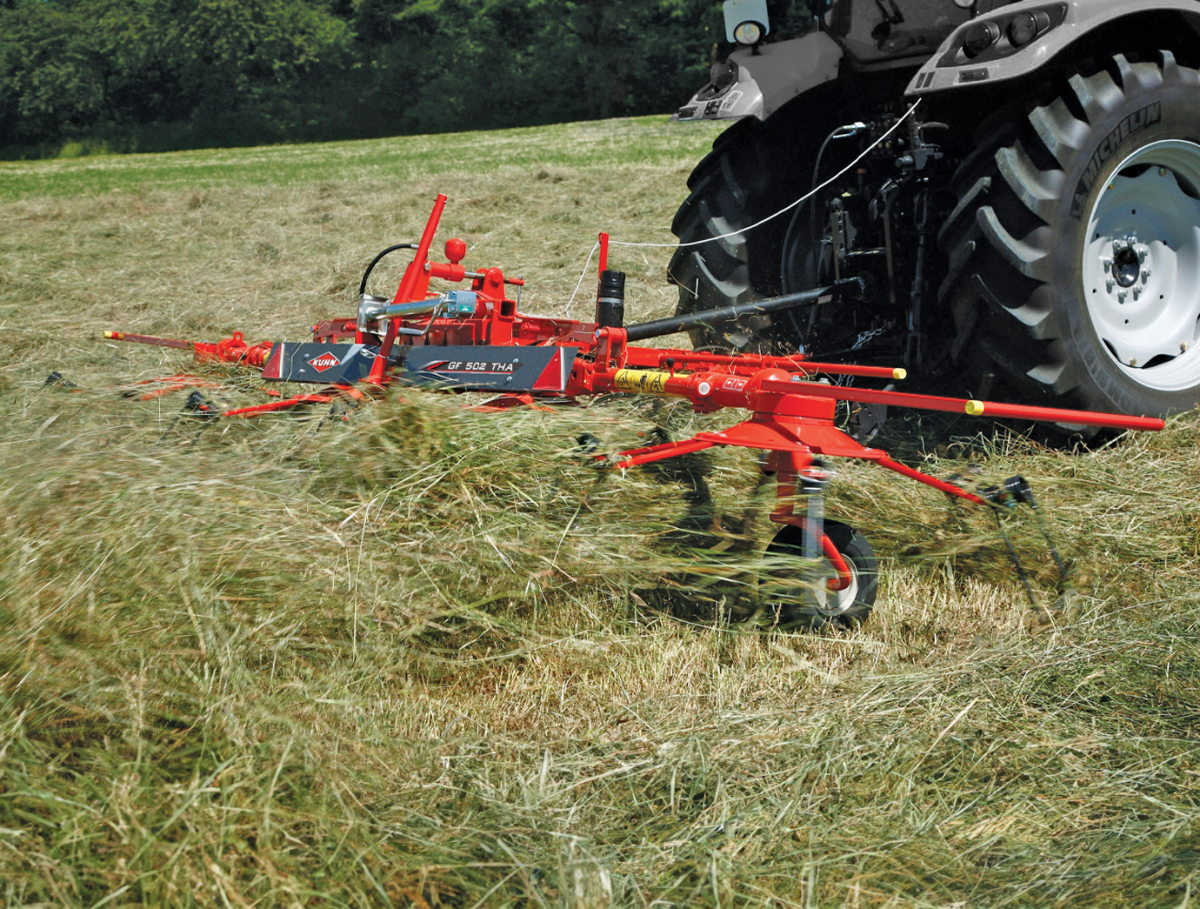

KUHN GF 102 Mounted Gyrotedders
Cost control is an essential issue on many farms. With the GF 502, KUHN provides you with a tedder that has all the features required for high quality tedding without too much sophistication. GF 502 tedder is a simple and effective machine with 4 rotors and working widths from 4.22m.
At work, the rotors follow the tractor perfectly thanks to the pivoting head. Activate the hydraulic valve and the tractor hitch system raises the rotors for road travel. In this position, the rotors are automatically centred and locked for fast and safe transport.
Features & Benefits
Equipped with four rotors and six tine arms, GF 502 tedders are the ideal tools for spreading large swaths. The large diameter rotors are specially designed to handle long and dense crops.
- Asymmetrical tine length with longer outer fingers produces high quality tedding. The outer finger moves into the forage earlier compared to a symmetrical design. This ensures a more complete tedding operation, even on field borders and between rotors (C) (E), due to better tine overlap in this tricky area. Moving into the forage earlier means that the actual working width of each rotor (therefore the machine) is larger.
- Experts are convinced and those who use them swear by them. For farmers, whose goal is to harvest a first-class crop there are so many advantages to having small rotors.
- Each wheel is easily adjusted obliquely, no tools required, for accurate border tedding without losing or wasting precious forage.
Specifications
| GF 502 | |
| Working width DIN (m) | 5.0 |
| Overall width in working position (m) | 5.43 |
| Number of rotors | 4 |
| Number of tine arms per rotor | 6 |
| Transport width (m) | 2.85 |
