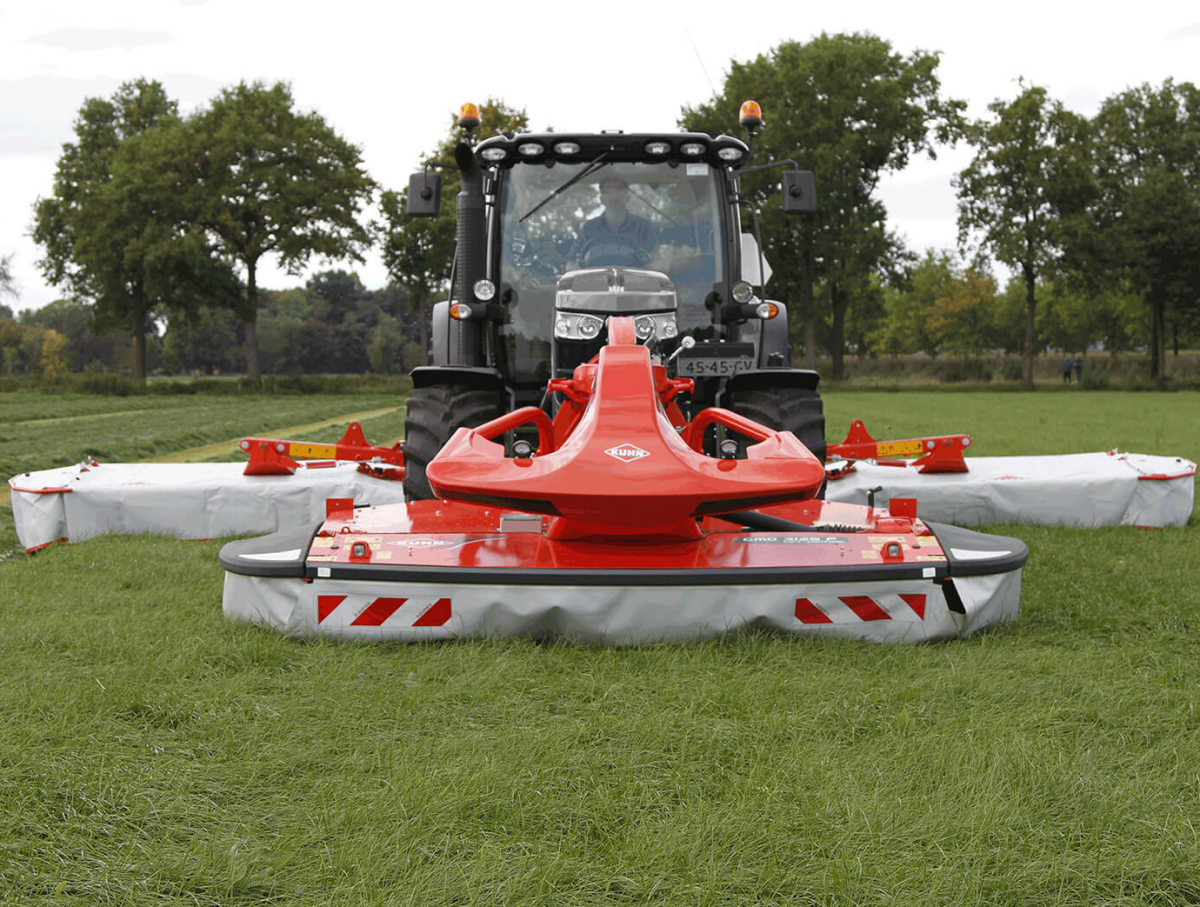

KUHN GMD 1025 F Disc Mower

Farmers can count on the high performance and reliability of KUHN's front-mounted GMD 1025 mowers to produce great quality forage. Available in 2 cutting widths (3.10 and 3.50m), GMD 1025 F series disc mowers are ideal for hilly ground, and perfectly adapted to medium-sized farms and agricultural contractors.

Two models are available: GMD 3125 F and GMD 3525 F. Hitch them to the tractor in combination with a triple GMD (GMD 8730, GMD 9530 or GMD 10030) to increase work output.

Features & Benefits

GMD 1025 F mowers have swathing drums on both sides that reduce the width of the swath by 20 cm compared to a classic swath.

Variable spacing between discs, large overlap zones and the reduced angle of the OPTIDISC cutter bar will provide you with the quality you need.
Dynamic loading creates better ground clearance and makes the mower unit more stable and effective in ground contouring, especially on hilly terrain.
In the event of a very violent impact, pre-defined breakage groves protect the drive modules and ensures the machine is quickly (within 15 minutes) back up and running at a low repair cost.

Specifications

	3135 F	3525 F
Working width (m)	3.10	3.50
Transport width (m)	2.99	3.48
Number of disks	7	8
Average swath width (m)	1.0 - 1.2	1.0 - 1.2
PTO speed (rpm)	1000	1000
