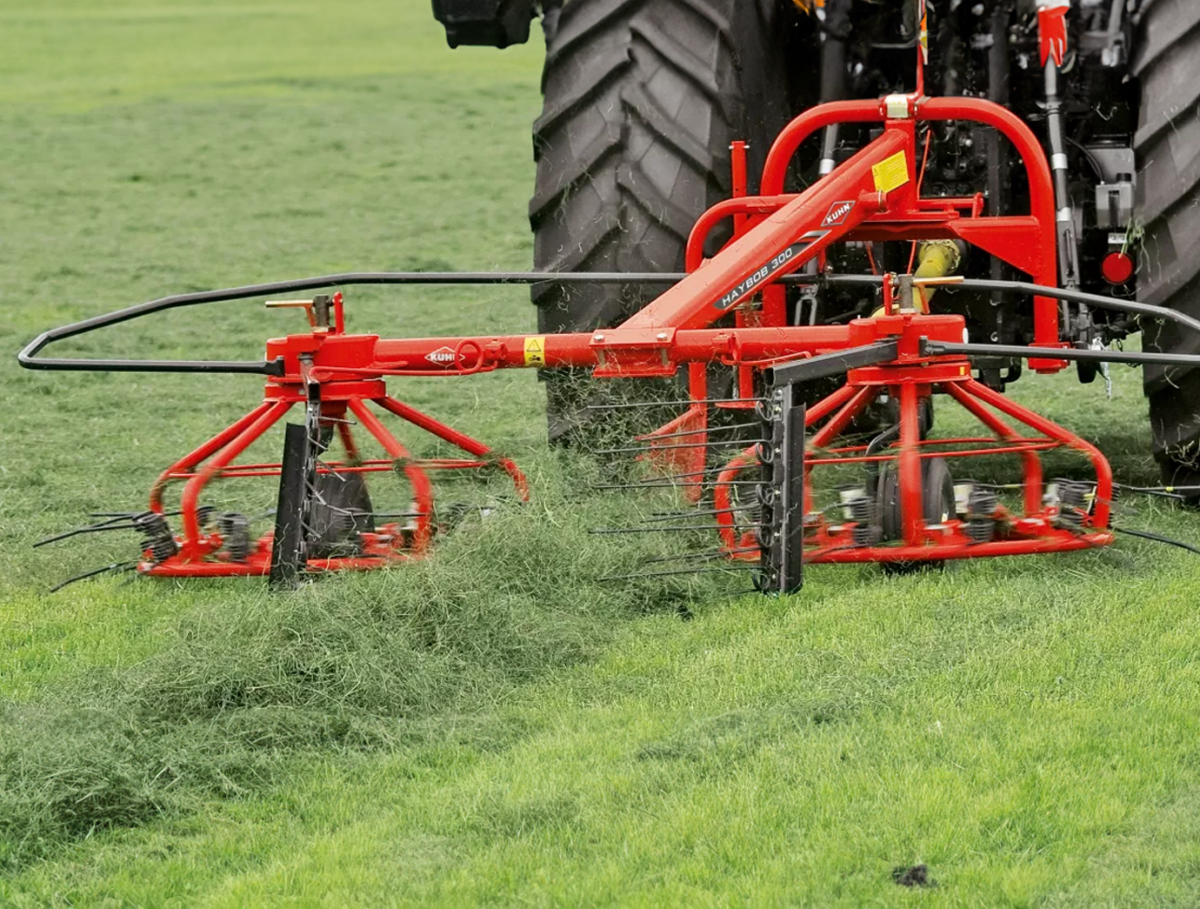

KUHN HAYBOB Tedder-Rake Combination
The KUHN HAYBOB 300 and 360 tedder-rake combinations are universal haymakers, ideally suited for small to medium sized farms. The HAYBOB offers excellent performance in a wide range of crops and provides thorough tedding to uniformly spread wet crops for faster drying. Easily converted from tedding to raking, these machines provide gentle crop handling and produce fluffy, well-formed swaths.
The HAYBOB provides a practical and economical alternative for producers who wish to save the cost of multiple specialised machines or make their first steps in mechanisation of their farm practices.
Features & Benefits
Reposition the tines, swing the crop deflectors, adjust the wheels and within minutes the HAYBOB 300 and 360 are set from tedding to raking position or vice versa.
- Each rotor is equipped with narrow and wide tines to obtain a wide working area for a higher capacity operation and faster working speeds.
- A central swath divider ensures that crop is evenly distributed between the rotors.
- Twenty individually mounted, pivoting tines feature nylon bearings to provide reliable performance and an operation that is practically maintenance free.
Specifications
| 300 | 360 | |
| Number of rotors | 2 | 2 |
| Number of tines per rotor | 10 | 10 |
| Working width - single windrow raking (m) | 3.00 (central delivery) | 3.60 (side delivery) |
| Working width - double windrow raking (m) | 6.00 (in 3 passes) | 6.00 (in 2 passes) |
| Working width - spreading and tedding (m) | 3.00 | 3.00 |
| Transport width (m) | 2.80 | 2.68 |
