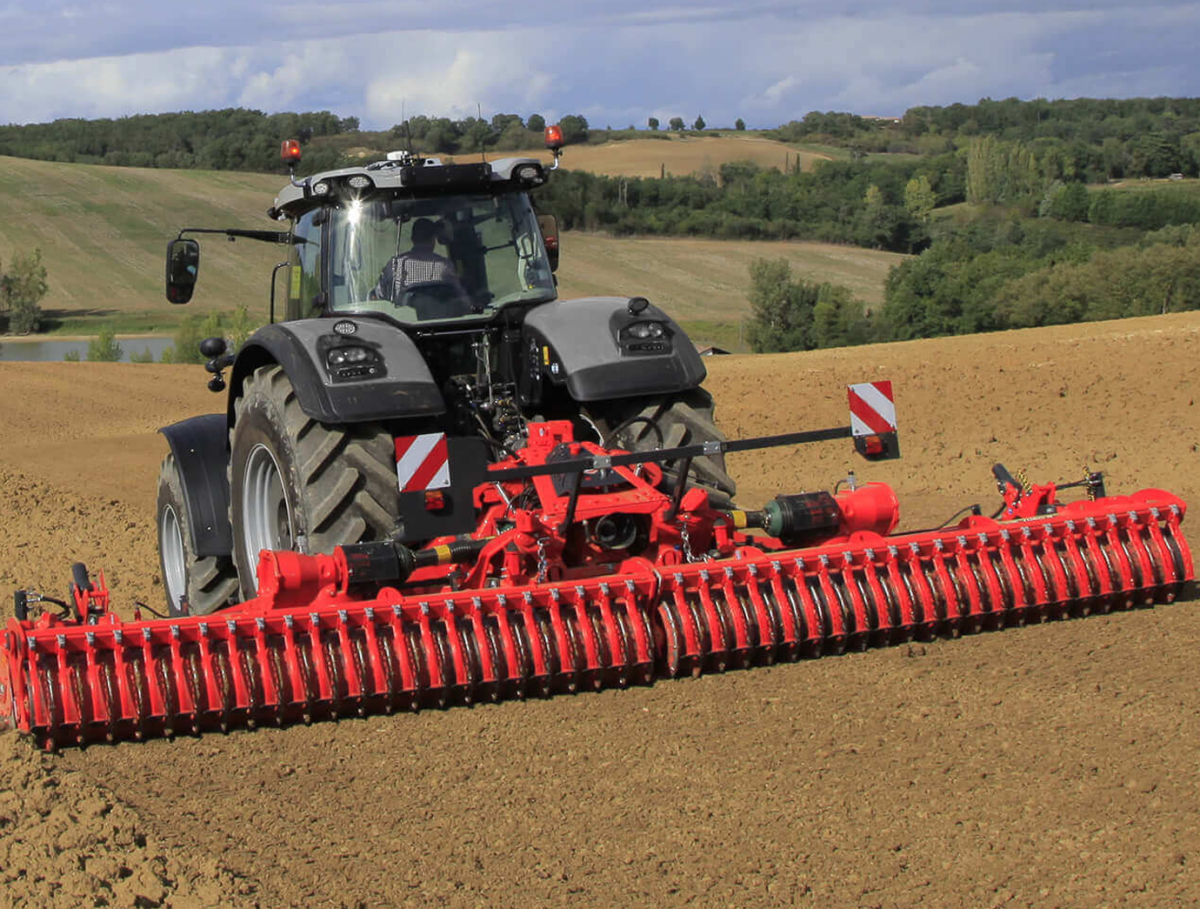

KUHN HR 2.5m-6m Power Harrow
Getting your seedbed right is crucial for consistent germination and root development. Every job is different, so you need gear that can handle whatever you throw at it. With a KUHN power harrow, you get a wide range of tines and equipment, as well as adjustable rotor speeds, so you can tailor your setup to suit your soil and conditions. This means you can be confident that your KUHN power harrow will deliver the results you're after.
Features & Benefits
A cleverly designed rotor-drive system and robust housing will guarantee a very long life with minimum maintenance.
- Specifically positioned tine holders to create a gradual soil mixing.
- A powerful rotor drive, fully protected by a rigid gearbox and trough.
- Folding models can be used in rigid or floating position thanks to their articulated central frame.
Specifications
| HR 3004 D | HR 3504 D | HR 4004 DR | HR 5004 DRC | HR 6004 DRC | |
| Min. tractor power (kW/hp) | 81/110 | 81/110 | 81/110 | 96/130 | |
| Working width (m) | 3 | 3.5 | 4 | 4.95 | 6 |
| Transport width (m) | 3.08 | 3.5 | 2.67 | 2.67 | 2.8 |
| Number of rotors | 10 | 12 | 14 | 16 | 20 |
| Working depth (cm) | 3 to 25 (up to 31 with long blades) | 3 to 25 (up to 31 with long blades) | 3 to 25 | 3 to 25 | 3 to 25 |
