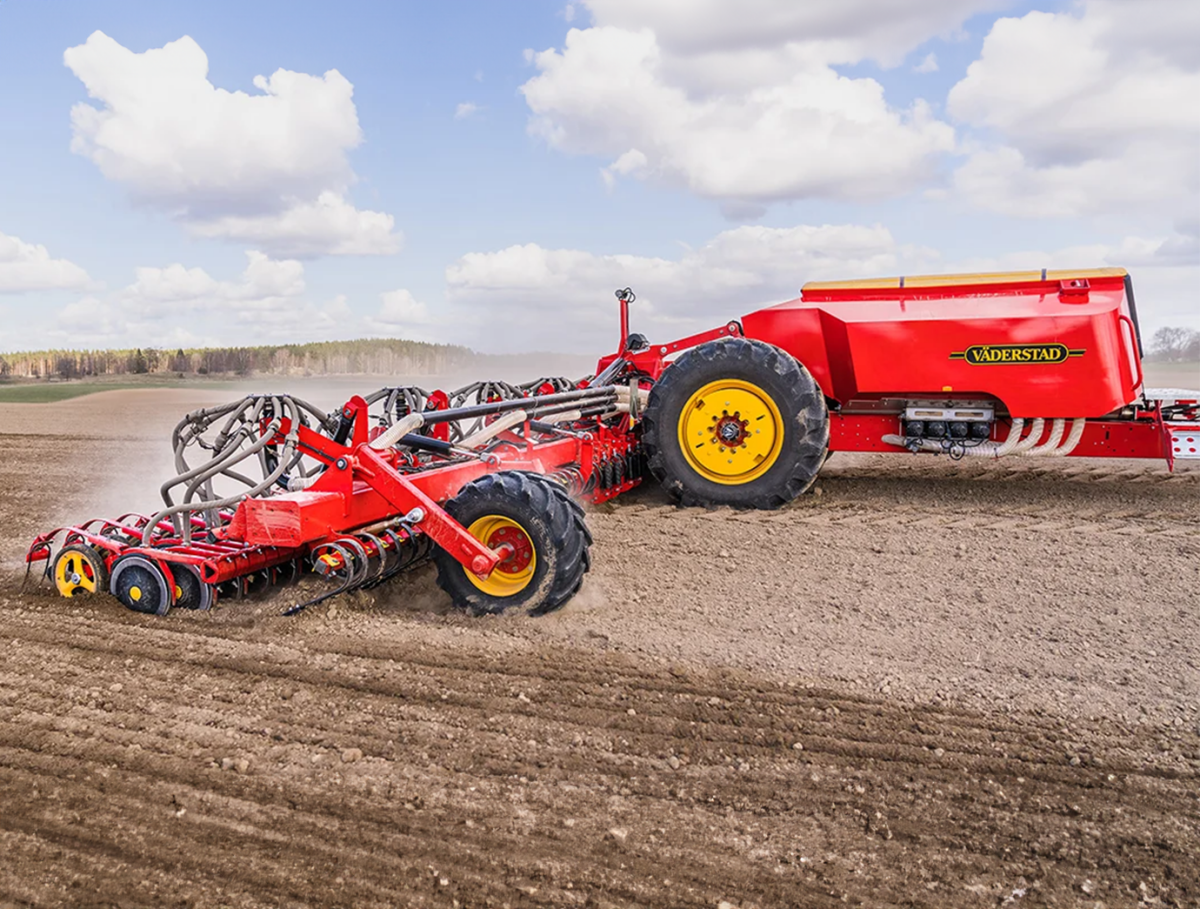

Väderstad Inspire Seed Drill
The 12-metre-wide pneumatic seed drill Inspire 1200C/S offers a high-capacity output at a low draught force requirement. Its adaptive double disc seed coulters system, paired with the highly advanced Fenix III metering system, results in an even emergence and strong crop growth. It is available as a seed-only or seed- and fertiliser model.
Inspire 1200C/S is able to control the output in eight separate sections. This means that Inspire 1200C/S can conduct sectional control down to 1.5m sections. This is a unique precision feature in the 12-metre seed drill segment.
Features & Benefits
Inspire 1200C/S is designed for high performance with minimised downtime in the field. It is equipped with a large hopper, with a low filling height and large opening. The seed-only version Inspire 1200S is equipped with a 5000-litre hopper for seeds. While the combi version Inspire 1200C has a 7200-litre hopper holding both seeds and fertiliser in two separate compartments. With a large platform and an open machine design, you benefit from good access to all components throughout the machine.
- The heart of Inspire is its responsive double disc seed coulter system. It has an excellent ability to adapt to any irregularities on the field, thereby always keeping the seeding depth constant. The result is an impressive seed placement and an even emergence over the entire field.
- Inspire 1200C/S is equipped with hydraulic wing pressure which transfers weight from the inner section of the machine to its outer wings. This enables Inspire 1200C/S to respond to any irregularities on the field and ensure an even emergence.
- To provide an aggressive working angle but with maximum penetration force, the seed discs are mounted in an Offset position. Inspire is able to reach the desired working depth irrespective of soil type or conditions on the field.
Specifications
| 1200S | 1200C | |
| Working width (m) | 12.0 | 12.0 |
| Transport width (m) | 3.0 (3.5) | 3.0 (3.5) |
| Volume seed hopper (l) | 5000 | 7200 (2200/5000) |
| Number of seed coulters | 96 | 96 |
| Row spacing seed (mm) | 125 | 125 |
