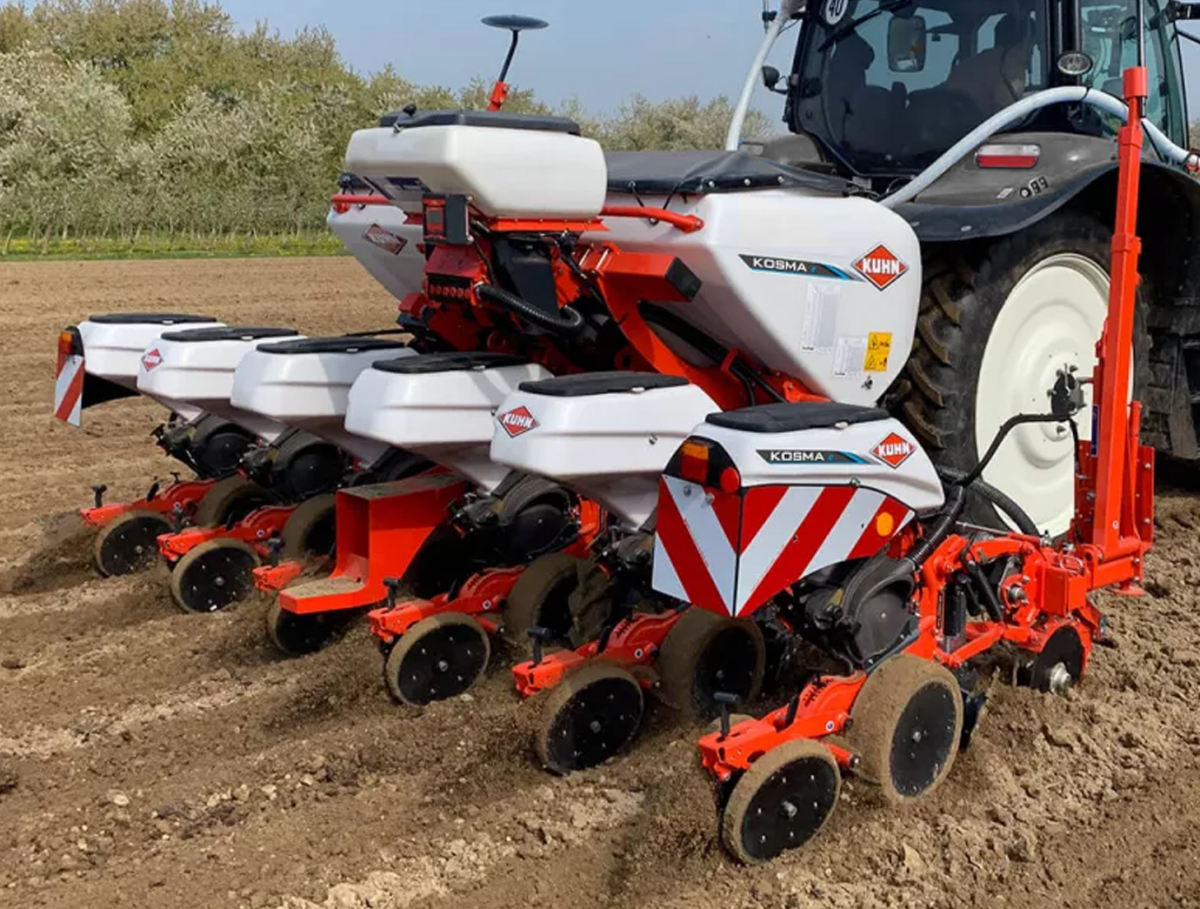

KUHN KOSMA Precision Planter
KOSMA is a new addition to the KUHN range of precision seed drills. Designed to work with light tractors and enable you to seed on well-prepared soil at speeds of between 4 and 8 km/h. This is just the right weight to output balance for cultivated ground, to limit soil compaction and reduce fuel consumption.
KUHN know farmers have constraints in terms of road transport and weight, so they offer a wide range of models for mixed-crop farms, contractors, co-operatives, and arable farms.
Features & Benefits
KOSMA precision seed drills are built with high quality materials and have an optimised design making them light but highly robust.
- Equipped with an effective coulter-pressure system, 12.5 or 25 kg can be added up to a maximum of 120 kg to provide excellent ground following.
- Select seeds perfectly with the 262 mm, large-diameter seed-selector disc.
- Smooth and continuous rotation for high-precision seeding with a 48V electric drive system.
Specifications
| R | TD | TS | TI MAIZE | |
| Number of rows | 8 / 9 / 11 / 12 | 6 | 6 / 7 / 8 | 6 |
| Spacing (cm) | 70 / 75 / 80 or 45 / 50 or 55 / 60 / 65 | 70 / 75 | 70 / 75 / 80 or 55 / 60 or 50 | 45 / 50 / 55 / 60 / 65 / 70 / 72.5 / 75 / 77 / 77.5 / 80 |
| Transport width (m) | 3.00 | 3.00 | 3.30 / 3.35 / 3.50 / 3.55 (8 rows) | 2.5 |
| Ground Pressure Capacity | 95 – 120 kg | 95 – 120 kg | 95 – 120 kg | 95 – 120 kg |
