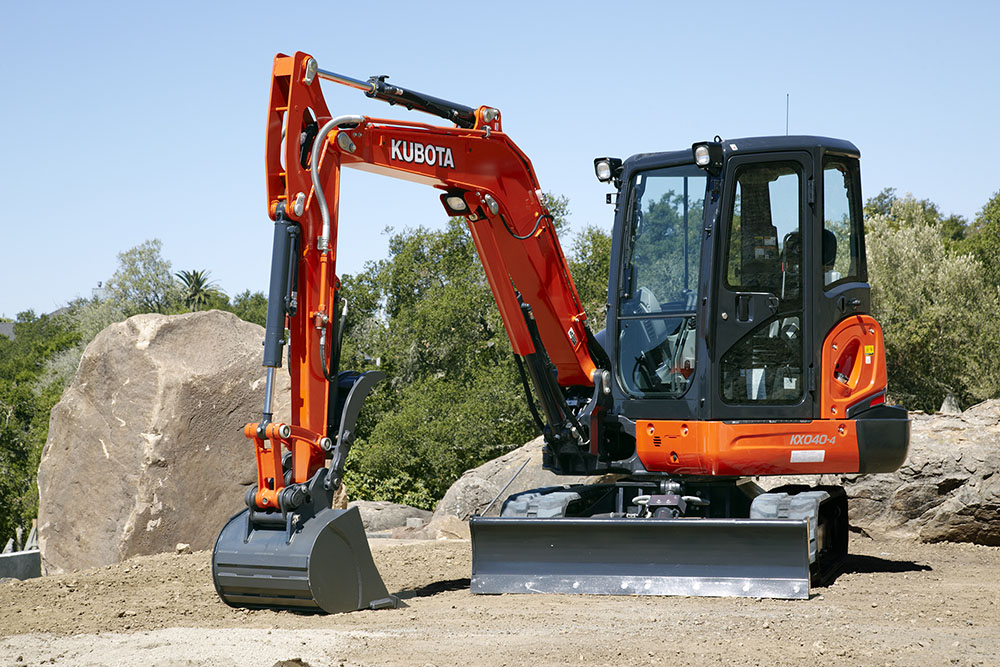

Kubota KX040-4 Excavator
The Kubota KX040-4 combines superior strength, versatility, and performance to deliver one of the most balanced excavators on the market. Incorporating industry leading technology, the Kubota KX040-4 produces less noise, reduced emissions and is equipped with eco mode, which can generate fuel savings by up to 20%.
Now with an angle blade model in the line-up the Kubota KX040-4 sets the benchmark for all other excavators to follow.
Features & Benefits
The KX040-4 has the power and versatility to take on almost any task even in the toughest conditions. Combined with improved digging and lifting power, and smoother travel performance, it can get the job done.
- Kubota’s CRS engine electronically controls the timing and amount of fuel injected, producing less engine noise and better fuel efficiency.
- Third line hydraulic return allows oil to flow back to tank without running through the control valves when working with one-way hydraulic attachments.
- An innovative counterbalance ensures superior excavator stability.
Specifications
| KX040-4 | KX040-4 Angle Blade | |
| Engine net (hp) | 38.9 | 38.9 |
| Max breakout force - bucket (kgf) | 3315 | 3315 |
| Width (mm) | 1700 | 1700 |
| Operating weight - canopy (kg) | 4185 | 4345 |
| Operating weight - cab (kg) | 4325 | 4482 |
| Max digging depth (mm) | 3420 | 3420 |
