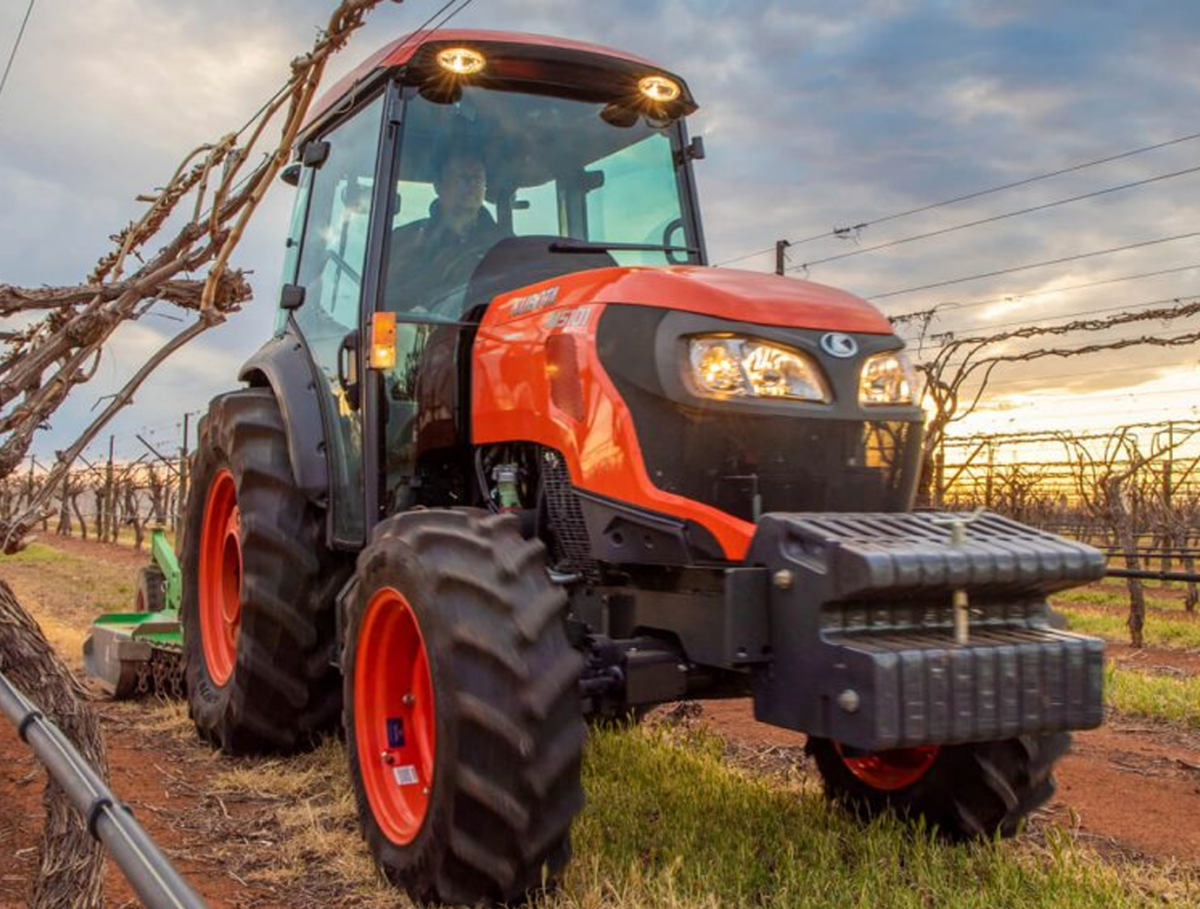

Kubota M5091/M5101 Narrow ROPS & CAB Tractor
For work in orchards and vineyards, where the spaces between rows are usually too narrow for standard width tractors, Kubota offers the M5001N Series. At just under 1.4m wide the M5001N Series can go where standard-width tractors can’t, letting you work with spreaders, sprayers, trimmers, leaf removers, and more in the tight spaces between rows of trees and vines.
The ability to turn tightly from one row to the next, thanks to Bi-Speed turning, ensures the productivity you expect. All M5001N series models feature 36 speed transmissions and enhanced hydraulic capabilities.
Features & Benefits
Specifically designed for work in vineyards, orchards, and other narrow job sites, the M5001N Series are just under 1.4m wide with standard tyres.
- 18 forward and 18 reverse gears — from six synchronised gears in three ranges.
- Bi-speed turn technology lets the front wheels begin turning twice as quickly as the rear wheels through higher turn angles.
- A supreme level of operator comfort and a sophisticated air conditioning system that provides a pleasant cab environment no matter the weather.
Specifications
| M5091DCN-DS | M5101DCN-DS | M5091DN-DS | |
| Engine gross (hp) | 93 | 105 | 87 |
| PTO (hp) | 75 | 88 | 78 |
| Hydraulic pump output (l/min) | 68.6 | 68.6 | 63.3 |
| Rear linkage lift capacity (kg) | 2300 | 2300 | 2300 |
| Tractor weight (kg) | 2600 | 2600 | 2490 |
