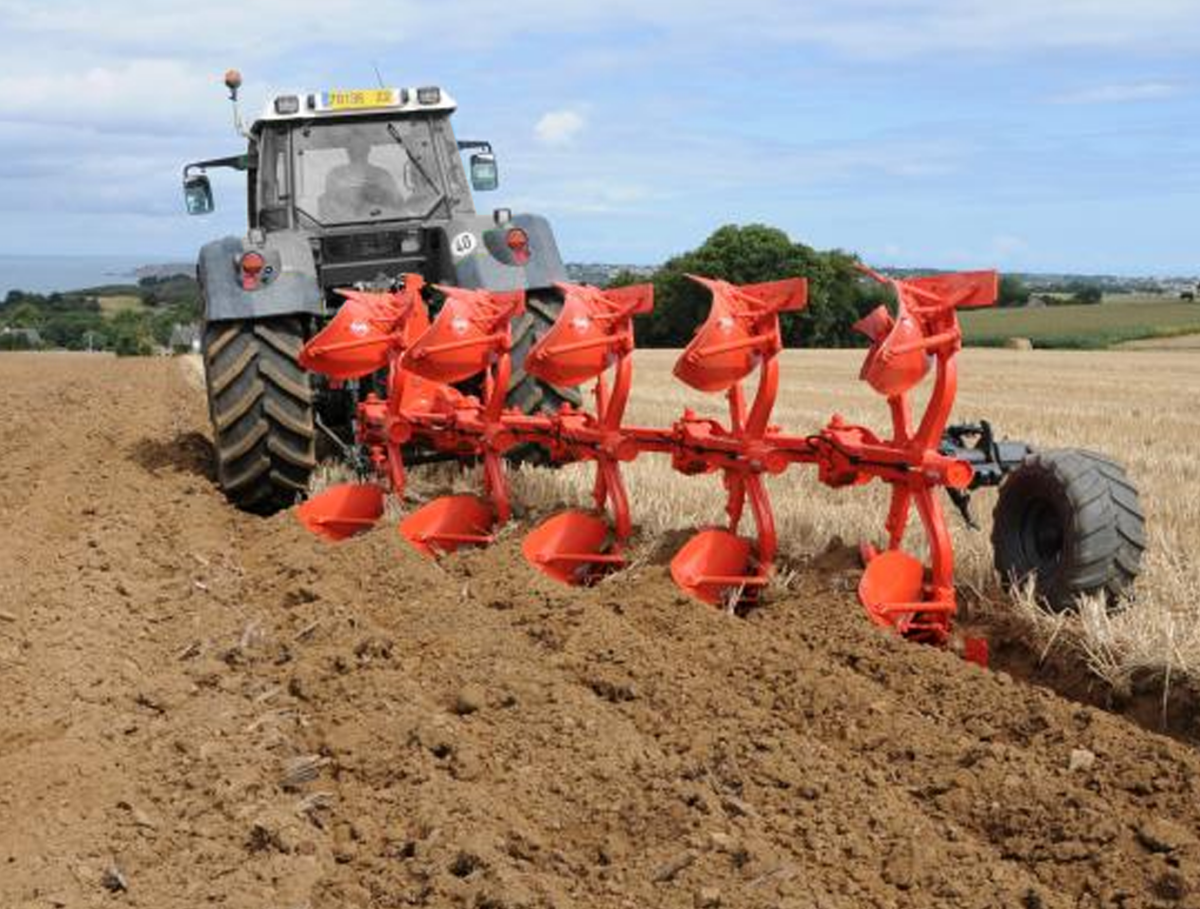

KUHN MASTER 123 Mounted Plough
KUHN MASTER ploughs are considered as the market reference in mounted ploughs by farmers all over the world. The unique design of the MASTER 123 ploughs guarantees outstanding ploughing quality to obtain the best yields from your crops and ensure the sustainability of your farm. The
The MULTI and VARI-MASTER 123 mounted reversible ploughs benefit from original KUHN forged and treated wearing parts offering the best value for money. Finally, by investing in a MASTER 123 plough, you benefit from KUHN's reputation and know-how and are sure to benefit from a resale value higher than that of the competition.
Features & Benefits
The MASTER 123 mounted reversible plough concentrates its main adjustments in the middle section. So, when setting up the plough in the field, you only need to adjust the offset to optimise ploughing quality and then the point of traction adapts automatically without touching the slope setting. The hydraulic offset option allows you to adjust the working quality of the MASTER 123 from the tractor cab.
- The MASTER 123 is available from 3 to 6 bodies and has a 120 x 120 mm beam. It is ideal for medium sized farms with tractors from 65 to 210 hp, who want a versatile, easy to use and robust plough for ploughing in light to medium soils.
- In addition to the quality of the work, the plough should be easy to use with intuitive settings to save you time during working periods. The MASTER 123 ploughs offer quick adaptation to any ploughing circumstances. Vertical, depth and offset adjustments are carried out without tools and have been designed to limit fuel consumption and increase the service life of wearing parts.
- To boost the performance of your plough, KUHN offers 2 options: the VARIBAR option varies the pressure at the share point at any time, from the cab and at work, so the plough immediately adapts to the working conditions OR the MAXIBAR option offers instant overload (600 to 2500 kg) of the safety devices for ploughing in very heavy soils.
Specifications
| MULTI-MASTER 123 4 | VARI-MASTER 123 4 | MULTI-MASTER 123 4E | VARI-MASTER 123 4E | |
| Maximum tractor power (hp) | 140 | 140 | 152 | 152 |
| Approx. weight (kg) for NSH version | 1420 | 1485 | 1525 | 1585 |
| Working width (cm) | 30-40 & 45 | 30–50 in 102- 30-45 in 90 | 30-40 & 45 | 30–50 in 102- 30-45 in 90 |
| Underbeam clearance (cm) | 75 / 80 (only in T safety) | 75 / 80 (only in T safety) | 75 / 80 (only in T safety) | 75 / 80 (only in T safety) |
| Point to point clearance (cm) | 90 or 102 | 90 or 102 | 90 or 102 | 90 or 102 |
| MULTI-MASTER 123 5 | VARI-MASTER 123 5 | MULTI-MASTER 123 5E | VARI-MASTER 123 5E | |
| Maximum tractor power (hp) | 175 | 175 | 190 | 175 |
| Approx. weight (kg) for NSH version | 1785 | 1855 | - | - |
| Working width (cm) | 30-40 & 45 | 30-45 | 30-40 & 45 | 30-45 |
| Underbeam clearance (cm) | 75 / 80 (only in T safety) | 75 / 80 (only in T safety) | 75 | 75 |
| Point to point clearance (cm) | 90 or 102 | 90 or 102 | 90 | 90 |
