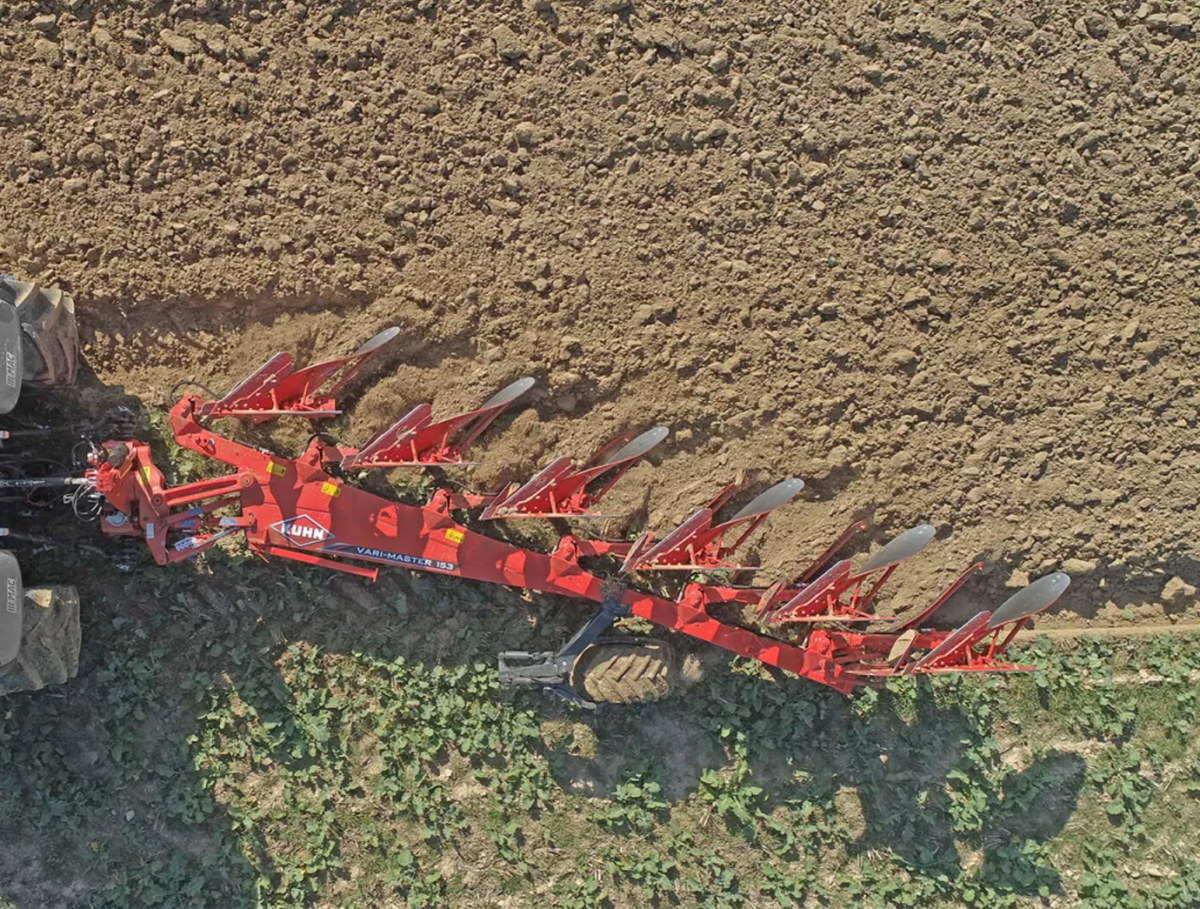

KUHN MASTER 153 Mounted Plough
KUHN MASTER 153 ploughs are considered as the market reference in mounted ploughs by farmers all over the world. The unique design of MASTER ploughs provides an exceptional level of performance to achieve high yields and optimise your bottom line.
They are distinguished from other ploughs on the market by their simplicity of use and ease of adjustment to increase your work rates and comfort; their reliability with a sturdy structure with many KUHN exclusives; their quality of work with total burial of residues and weeds.
Features & Benefits
KUHN MASTER 153 mounted ploughs have a common objective: to help you reap the benefits of your investment quickly. With the MASTER 153, you will be able to use tractors up to 270 hp. This range is available from 4 to 6 bodies, in MULTI-MASTER and VARI-MASTER versions, with T traction bolt safety or Non-Stop Hydraulic safety.
- The middle part of the MASTER 153 ploughs contains the majority of adjustments. Simple to use, this specific kinematics allows you to choose the ideal working range for your tractor. There is no need to adjust the angle, the point of traction adapts automatically. Once in the field, all you have to do is refine the offset to achieve perfect working quality. Fast, simple and efficient, such is the offset on MASTER 153 ploughs.
- The linkage 100% integrated into the beam of the MASTER 153 plough is a KUHN exclusive! The entire working width mechanism is integrated into the frame to guarantee total protection against external aggression (falling stones and earth, humidity, corrosion, etc.). This KUHN exclusivity offers a much longer service life than conventional mechanisms.
- 2 clearances are available on MASTER 153 mounted ploughs: in 4 and 5 furrows 102 cm: this clearance is recommended for destroying live plant cover or for burying a bed of previously shredded residue. In this configuration, the soil flow circulates easily between 2 bodies while maintaining an optimal position of the skimmers. The quality of ploughing is maintained despite the high presence of residues OR in 5 and 6 furrows 96 cm: This is the best compromise to maximise the passage capacity in the presence of abundant residues while maintaining working comfort with a plough that is easy to manoeuvre.
Specifications
| MULTI-MASTER 153 4E | VARI-MASTER 153 4E | MULTI-MASTER 153 5 | VARI-MASTER 153 5 | |
| Maximum tractor power (hp) | 180 | 180 | 225 | 225 |
| Approx. weight (kg) for NSH version | 1635 | 1665 | 1925 | 1945 |
| Working width (cm) | 35-40 & 45 | 30-50 | 35-40 & 45 | 30-50 |
| Underbeam clearance (cm) | 80 / 90 in T – 80 in NSH | 80 / 90 in T – 80 in NSH | 80 / 90 in T – 80 in NSH | 80 / 90 in T – 80 in NSH |
| Point to point clearance (cm) | 102 | 102 | 102 | 102 |
| MULTI-MASTER 153 5E | VARI-MASTER 153 5E | MULTI-MASTER 153 6 | VARI-MASTER 153 6 | |
| Maximum tractor power (hp) | 225 | 225 | 270 | 270 |
| Approx. weight (kg) for NSH version | 2005 | 1975 | 2340 | 2250 |
| Working width (cm) | 35-40 & 45 | 30-49 | 35-40 & 45 | 30-49 |
| Underbeam clearance (cm) | 80 / 90 in T – 80 in NSH | 80 | 80 / 90 in T – 80 in NSH | 80 |
| Point to point clearance (cm) | 96 | 96 | 96 | 96 |
