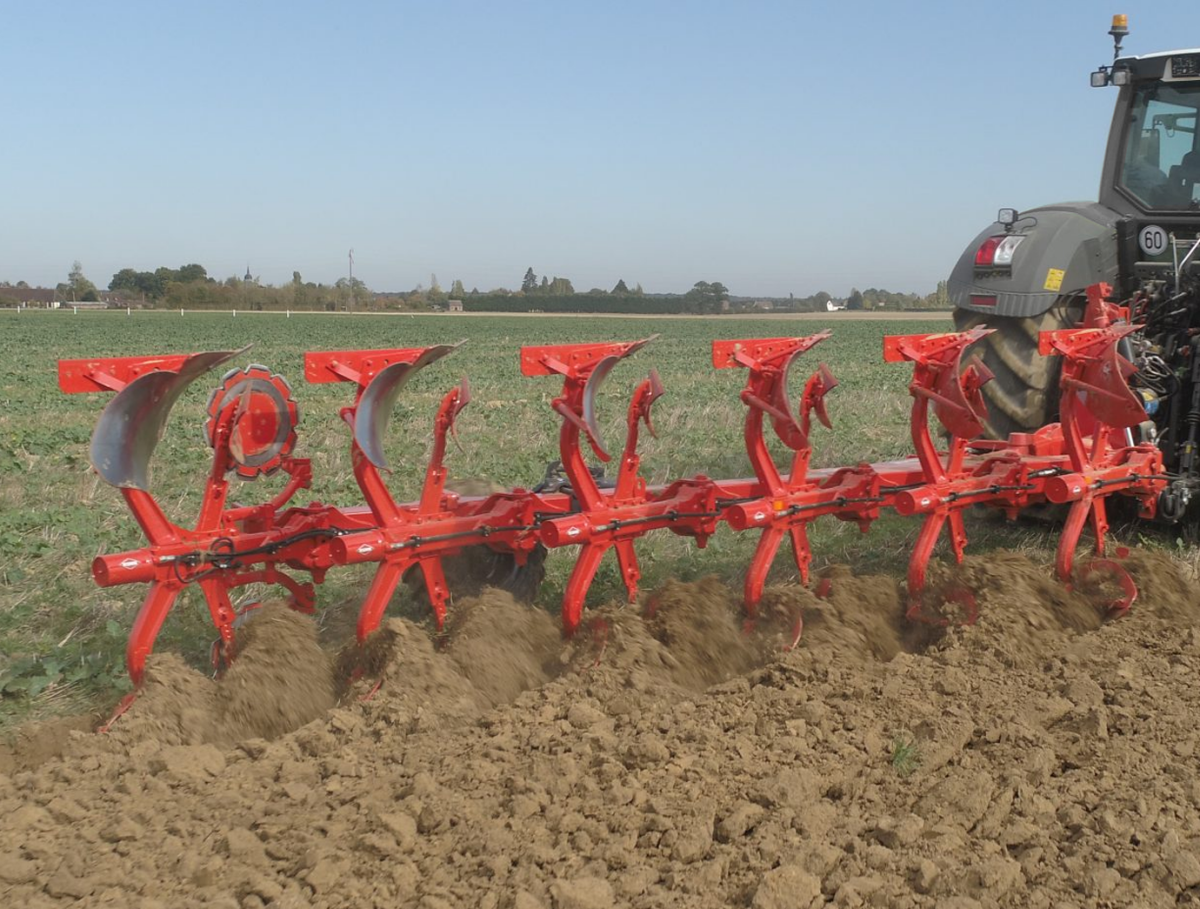

KUHN MASTER 183 Mounted Plough
KUHN has developed the MASTER 183 mounted ploughs to enable farmers and contractors to benefit from a robust plough capable of ploughing a large number of hectares in difficult conditions with a remarkable quality of work.
The MASTER 183 ploughs allow you to preserve the agronomic value of your soils while guaranteeing increased productivity. The profitability of your company depends on reliable, high-performance machines such as the MASTER 183 ploughs.
Original KUHN wearing parts guarantee better working quality and longer machine life. Whether you opt for a MASTER 183 plough with variable or multiple width, traction bolt or hydraulic safety, you will quickly reap the benefits of your investment.
Features & Benefits
The MASTER 183 ploughs are equipped with a 180 x 180 mm beam reinforced by a profile welded beyond the plough's centre of gravity to increase strength. This range, available in 5, 6 and 7 furrows, is ideal for contractors, cooperatives, and farms with tractors between 170 and 385 hp. The MASTER 183 is an enduring mounted reversible plough with high work rates.
- The Optidrive is a suspended headstock with a fully integrated mechanism consisting of two jacks and accumulators connected to a double inner jib crank.
- The Optidrive system is locked automatically when the plough is ploughing to ensure optimum work quality and tractor draft control. At the headland, the suspension is active and protects both the tractor and the plough. The Optidrive headstock is available as standard on the MASTER 183 range.
- The transport wheel with suspension secures your MASTER 183 plough during transport and allows you to drive at 25 km/h in accordance with road traffic regulations. This 660 mm diameter wheel is equipped with an elastomer block suspension and is mounted at the rear of the plough to protect the frame and tractor from possible shocks during road transport. The transport position is easily set by pulling the handle to tilt the wheel.
- Located just before the plough body, the skimmer cuts and turns over the first few centimetres of the strip of land. Its role is essential to ensure 100% burying of the residues in the bottom of the furrow. The MASTER 183 mounted reversible ploughs have independent skimmers mounted on a sheath to guarantee a very good hold without any risk of sliding or rotation.
Specifications
| MULTI-MASTER 183 4E OL | MULTI-MASTER 183 5E | VARI-MASTER 183 5E | MULTI-MASTER 183 6 | |
| Maximum tractor power (hp) | 220 | 275 | 275 | 330 |
| Approx. weight (kg) for NSH version | 2110 | 2255 | 2280 | 2555 |
| Working width (cm) | 35-40-45 & 50 | 35-40-45 & 50 | 30-49 | 35-40-45 & 50 |
| Underbeam clearance (cm) | 80 in NSH | 80 in NSH – 80/90 in T | 80 in NSH – 80/90 in T | 80 in NSH – 80/90 in T |
| Point to point clearance (cm) | 102 | 96 | 96 | 96 |
| VARI-MASTER 183 6 | MULTI-MASTER 183 7 | VARI-MASTER 183 7 | |
| Maximum tractor power (hp) | 330 | 385 | 385 |
| Approx. weight (kg) for NSH version | 2560 | - | 2840 |
| Working width (cm) | 30-49 | 35-40-45 & 50 | 30-49 |
| Underbeam clearance (cm) | 80 in NSH – 80/90 in T | 80 in NSH – 80/90 in T | 80 in NSH – 80/90 in T |
| Point to point clearance (cm) | 96 | 96 | 96 |
