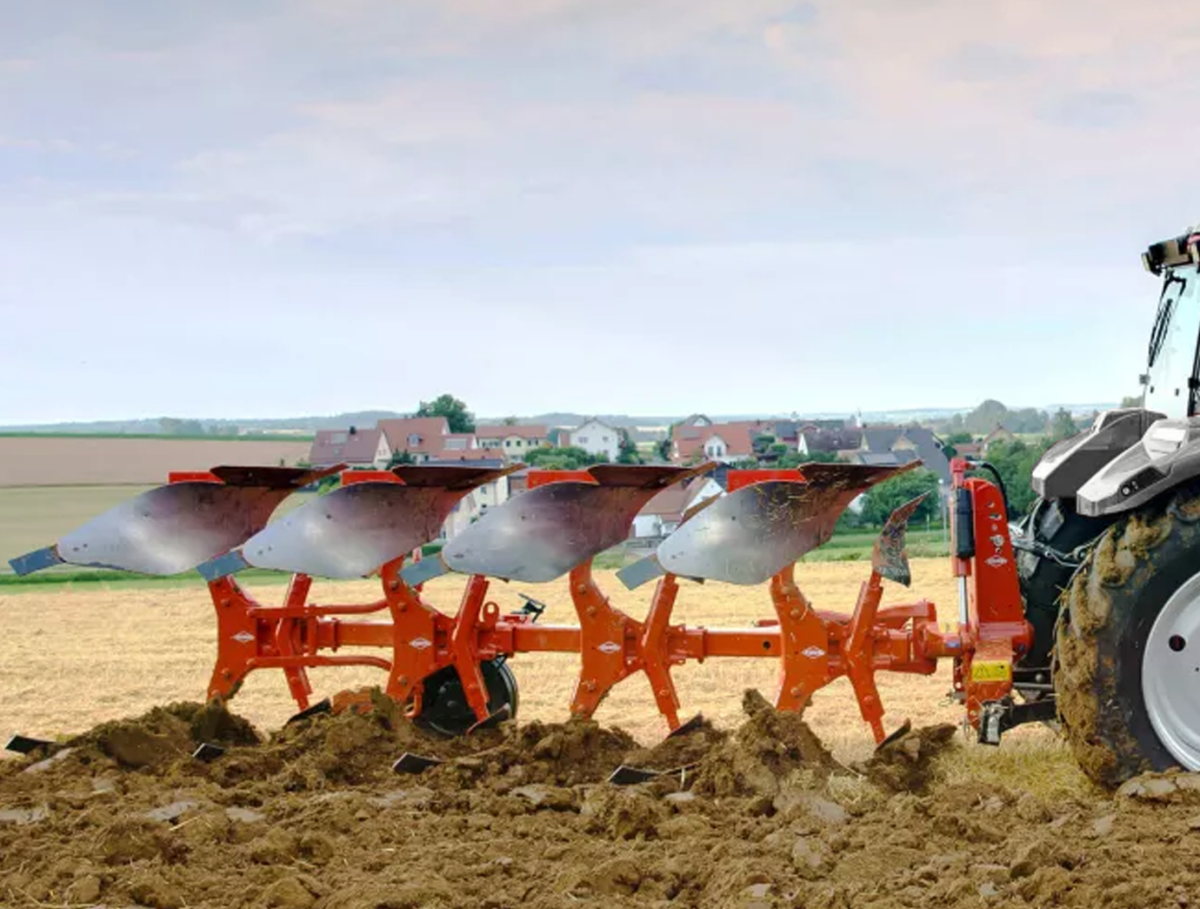

KUHN MASTER L Mounted Plough
The MASTER L series with its simple and robust design is for tractors from 200 to 300 hp. It combines power, reliability, and work quality to offer the best ploughing performance. The MASTER L mounted plough improves the productivity of your crops and preserves agronomic value of your soils by effectively burying organic matter. Larger working widths and great manoeuvrability to reduce your operating costs. The MASTER L, placed between the MASTER 153 and 183, is designed for intensive use on medium-sized farms.
Features & Benefits
Available from 4 to 6 bodies with a multiple or variable width system and with traction bolt or non-stop hydraulic safety, the MASTER L range is also equipped with numerous exclusives and a wide choice of equipment to meet the expectations of farms and contractors alike. The MASTER L is the new reference in high precision ploughing thanks to its simple and ingenious adjustments.
- The clever design of the MASTER L means the depth wheel is closer to the frame, so you can plough closer to the field edge. Several wheel positions are available to best adapt to your plough’s configuration. Whether you have an extension fitted or not, the wheel can be positioned within the outline of the plough. Fields can be ploughed closer to the boundary to limit weed propagation. For improved stability, a depth wheel can also be installed at the end of the beam which can improve the traction.
- The patented “3D-Skim” adjustment is simple, fast, and tool-free for a quick and easy adjustment in all conditions. In a single operation, you can simultaneously adjust the skimmer's working depth and angle of attack. The skimmer's profile is also key, the VARI-MASTER L skimmer has an ergonomic shape to help with soil flow.
- KUHN provides high quality wearing parts manufactured and forged in our factories. The mouldboards of the VARI-MASTER L benefit from TRIPLEX technology with uneven layers. TRIPLEX is a KUHN exclusive, guaranteeing high quality ploughing and an unequalled wear reserve. It consists of three layers of different hardness and different thickness to optimise the wear resistance of the mouldboards.
Specifications
| VARI-MASTER L 4E | VARI-MASTER L 5 | VARI-MASTER L 5E | VARI-MASTER L 6 | |
| Maximum tractor power (hp) | 200 | 250 | 250 | 300 |
| Approx. weight (kg) for NSH version | 2009 | 2299 | 2279 | 2562 |
| Working width (cm) | 30-55 | 30-55 | 30-55 | 30-55 |
| Underbeam clearance (cm) | 80 in NSH – 85/90 in T | 80 in NSH – 85/90 in T | 80 in NSH – 85/90 in T | 80 in NSH – 85/90 in T |
| Point to point clearance (cm) | 101 | 101 | 95 | 95 |
