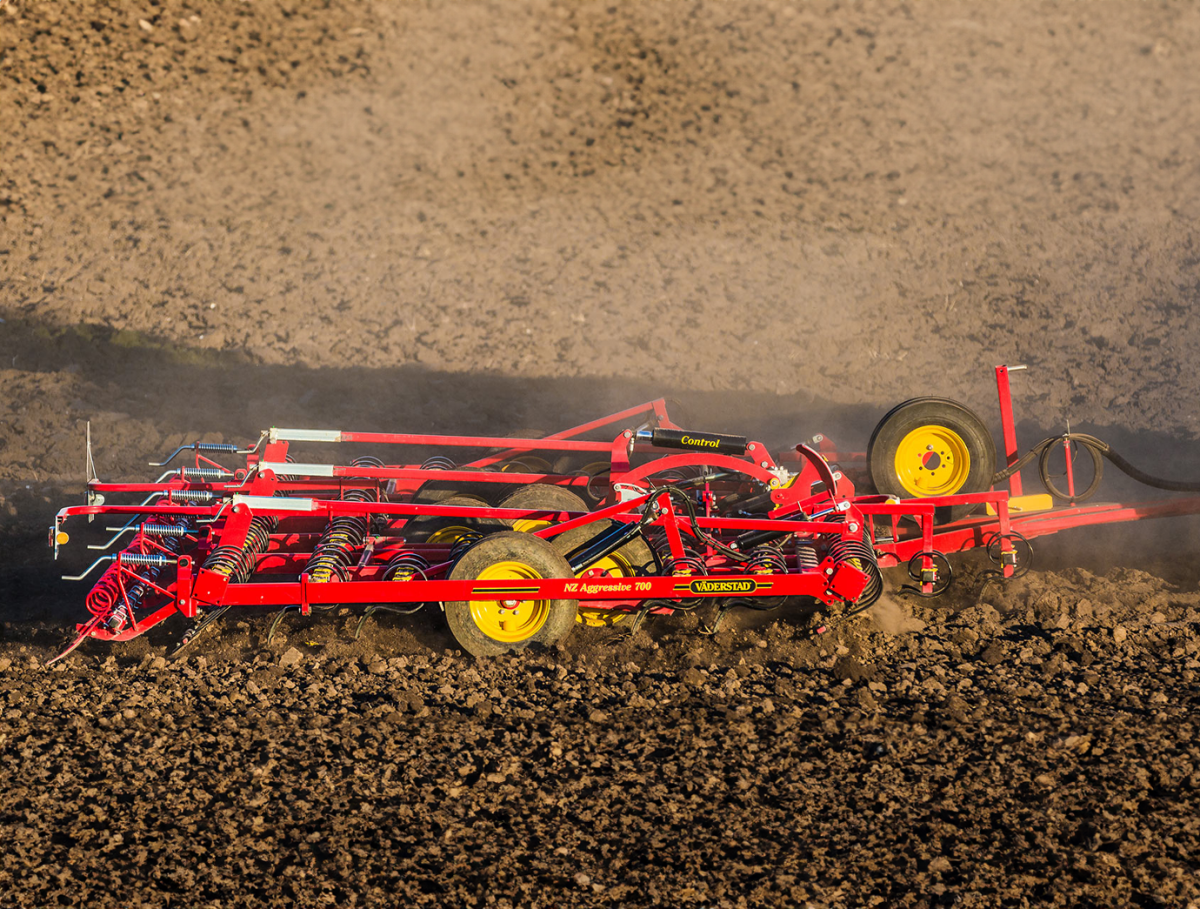

Väderstad NZ Aggressive Tine Harrow
Väderstad NZ Aggressive is a seedbed tine harrow, available in working widths from 5 to 8 metres. It has a levelling CrossBoard followed by tines with 7.5cm spacing, distributed across 5 axles. To enable an optimal crop establishment, NZ Aggressive can be set to work slightly harder on headlands or in areas where somewhat deeper cultivation is required.
The highly intensive cultivation saves passes whilst retaining ground moisture. You benefit from a high carrying capacity, giving a constant working depth and enabling early entry into the field.
Features & Benefits
The combination of good ground clearance and tine distribution provides an impressive through-flow and intensive seedbed cultivation.
- CrossBoard provides an aggressive cultivation, ensuring that clods are crushed, and the soil is levelled. The working intensity is easily controlled hydraulically from the cab.
- The double-acting stabiliser bar ensures that all CrossBoard tines work together as one unit, preventing individual tines to move forward or backward.
- With the Single Knife fitted on the CrossBoard, the cultivation effect is further intensified. This is a benefit in heavy soils or ploughed land.
Specifications
| 600 | 700 | 800 | |
| Effective working width (m) | 5.95 | 6.95 | 7.90 |
| Transport width (m) | 3.0 | 3.6 | 3.6 |
| Number of tines | 79 | 93 | 105 |
| Tine spacing (cm) | 7.5 | 7.5 | 7.5 |
| Draught requirements from (hp) | 120 | 140 | 160 |
