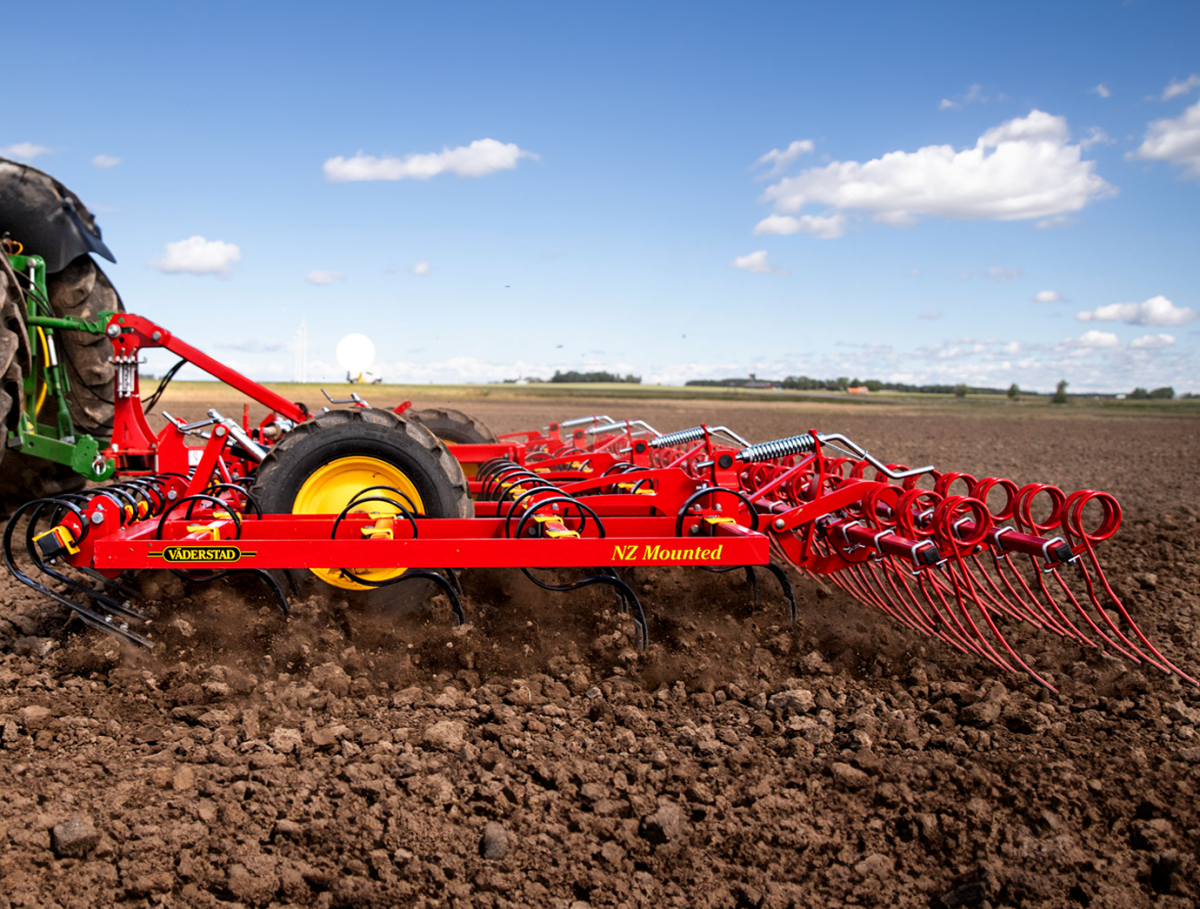

Väderstad NZ Mounted Tine Harrow
Väderstad NZ Mounted is a mounted tine harrow available in 5 or 6 metre working width. NZ Mounted is equipped with a versatile drawbar enabling the choice between a locked or a floating drawbar setting. In the floating position, NZ Mounted can move independently from the tractor, offering an exceptional contour following in three dimensions.
The AgrillaNova tines fitted on four axles with a tine spacing of 9cm, delivers intensive seedbed preparation.
Features & Benefits
Väderstad NZ Mounted provides seedbed preparation with high precision.
- OffSet mounted support wheels provides NZ Mounted with stability lengthwise and ensures that the tines in the first-row work at the same depth as the last row.
- CrossBoard provides an intensive cultivation, ensuring that clods are crushed, and the soil is levelled. The working intensity is controlled hydraulically from the cab.
- NZ Mounted is mounted on the tractors three-point linkage, making it easy to manoeuvre in the field.
Specifications
| 500 | 600 | |
| Effective working width (m) | 5.0 | 6.0 |
| Transport width (m) | 2.05 | 2.05 |
| Number of tines | 54 | 64 |
| Tine spacing (cm) | 9 | 9 |
| Draught requirements from (hp) | 80-120 | 100-140 |
