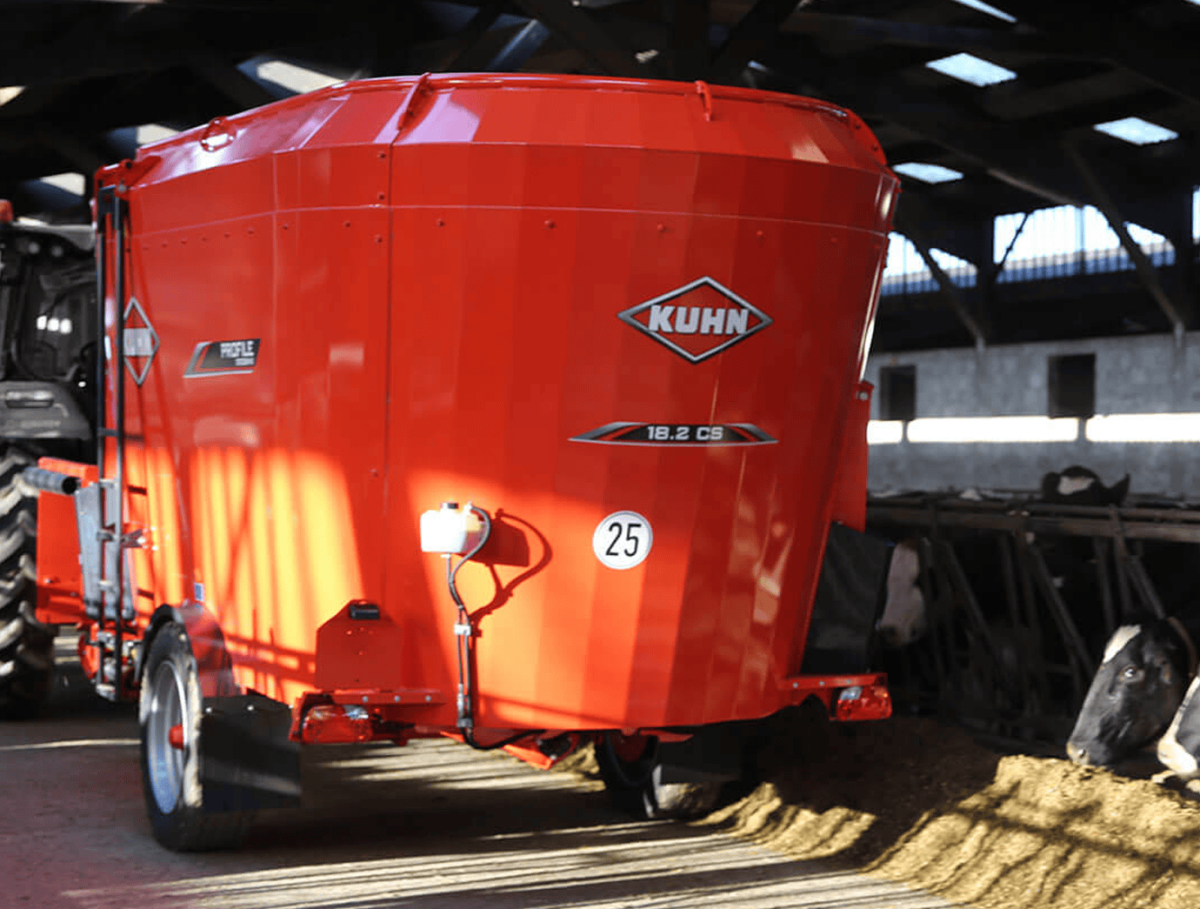

KUHN Profile 18.2 Crossmix Mixer Wagon
The PROFILE CROSSMIX 18.2 CS is designed with the wheels outside the tub for farms with buildings that are far apart across uneven or difficult terrain. The large diameter tyres integrated into the chassis ensure excellent driving in difficult conditions. PROFILE CROSSMIX 18.2 CS mixer wagon is designed to go anywhere.
Another key feature of the PROFILE CROSSMIX 18.2 CS is undoubtedly the distribution quality (speed and regularity), with its large cross-conveyor positioned at the front of the machine.
Features & Benefits
The PROFILE CROSSMIX 18.2 CS mixer comes with a wide cross-conveyor as standard to deliver the feed-out on the right or on the left of the machine and features an extra wide door. The 1200 mm wide opening can deliver fibrous rations from the tub without requiring excessive chopping. The mixing augers feature a second double-bent scraper to guide the fodder towards the door without being recirculated back around the tub.
- To reduce power consumption, the PROFILE range is equipped with asymmetric knives which have a “self-cleaning” effect and has a progressive-cutting knife edge for constant torque transfer. The continuous auger helix naturally moves the fodder from the bottom to the top of the tub for even mixing with no forced movements, reducing fuel consumption during the mixing process.
- Auger design: the continuous helix of the mixing auger gravitates the fodder from the bottom of the tub to the top without any forced movements. The mixing process is performed easily and smoothly for greater fuel efficiency.
- The 2 applications KUHN Datamix VIEW and KUHN Datamix CONTROL are pre-installed on your weighing assistant. You are bound to have all your needs met with the easy-to-use secondary display unit (KUHN Datamix VIEW) and the application that lets you program and perform all the functions of your mixer’s weighing unit from your assistant (KUHN Datamix CONTROL). You can access all the weighing data within a communication range of 90 m around your machine.
Specifications
| 18.2 CS | |
| Capacity (m3) | 18 |
| Mixing System | 2 vertical augers |
| Minimum PTO power requirement kW (hp) | 66 (90) |
| PTO speed (min) | 540 |
| Output mini/maxi (l/min) at 180 bar (pressure required) | 20-50 |
