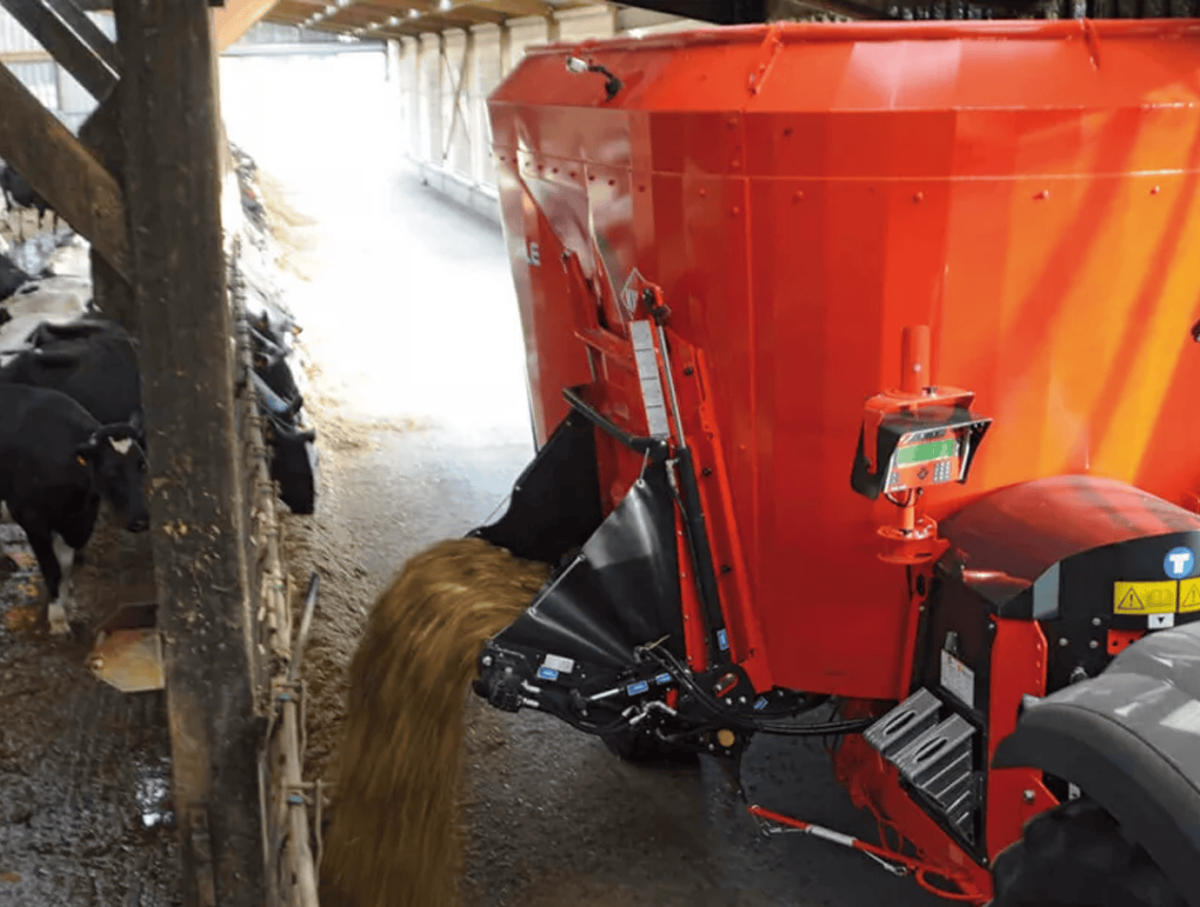

KUHN Profile 2 DL Mixer Wagon
With capacities starting at 18 m3 and ranging up to 34 m3, these machines are ideal for larger scale farms and manoeuvring around tight spaces. This new range of PROFILE mixer wagons sets a whole new standard in the trailed mixer wagon sector.
The PROFILE 2 DL mixer wagons have been designed to make the most of maximum tub capacity with the lowest possible overall height. Available with single axles for the 18 to 26 m3 models and with bogie axles for the 28 to 34 m3 models, the PROFILE 2 DL mixer wagons are built to handle the yard and the road.
Features & Benefits
To ensure the long-term performance of your PROFILE 2 DL mixer wagon, the K-NOX augers are designed to substantially reduce wear and tear caused by abrasion and silage acidity.
- The wear and tear which affects the mixing auger over the years, will be spread evenly across the whole surface of the mixing auger and on the central cone. That is why K-NOX mixing augers are built entirely from the same alloy: auger, cone, and scraper.
- The machine transmission is made up of a two-stage bearing therefore even during breakdown of a whole bale, stress is absorbed. The combination of the pre-stressed subframe and the solid auger base provides maximum resistance to the load bearing in the bottom of the machine. The unit is fitted on a collar which reaches up to approximately half the auger height, thus protecting the transmission from lateral forces exerted on the auger.
- The weighing system on the PROFILE 2 DL-CL-PLUS range is designed with load cells integrated into a cradle between the axle and the tub. The load cells are positioned in the direction of travel of the machine, not perpendicularly. None of the constraints related to transport affect the structure of the load cells.
- For each member of the herd to get their maximum feed intake, the feed-out of the mixed ration must be evenly mixed and distributed across the whole length of the feed passage. It is important to reduce competition for feed between livestock in the same pen. All animals must get their fair share of quality mixed rations!
Specifications
| 18.2 DL | 20.2 DL | 22.2 DL | 24.2 DL | |
| Capacity (m3) | 18 | 20 | 22 | 24 |
| Mixing System | 2 vertical augers | 2 vertical augers | 2 vertical augers | 2 vertical augers |
| Height of mixing auger (mm) | 900 | 900 | 900 | 900 |
| Minimum PTO power requirement (hp) | 90 | 95 | 100 | 110 |
| PTO speed (min) | 540 | 540 | 540 | 540 |
| 26.2 DL | 28.2 DL | 30.2 DL | 34.2 DL | |
| Capacity (m3) | 26 | 28 | 30 | 34 |
| Mixing System | 2 vertical augers | 2 vertical augers | 2 vertical augers | 2 vertical augers |
| Height of mixing auger (mm) | 900 | 1100 | 1100 | 1100 |
| Minimum PTO power requirement (hp) | 115 | 120 | 125 | 130 |
| PTO speed (min) | 450 | 540 | 540 | 540 |
