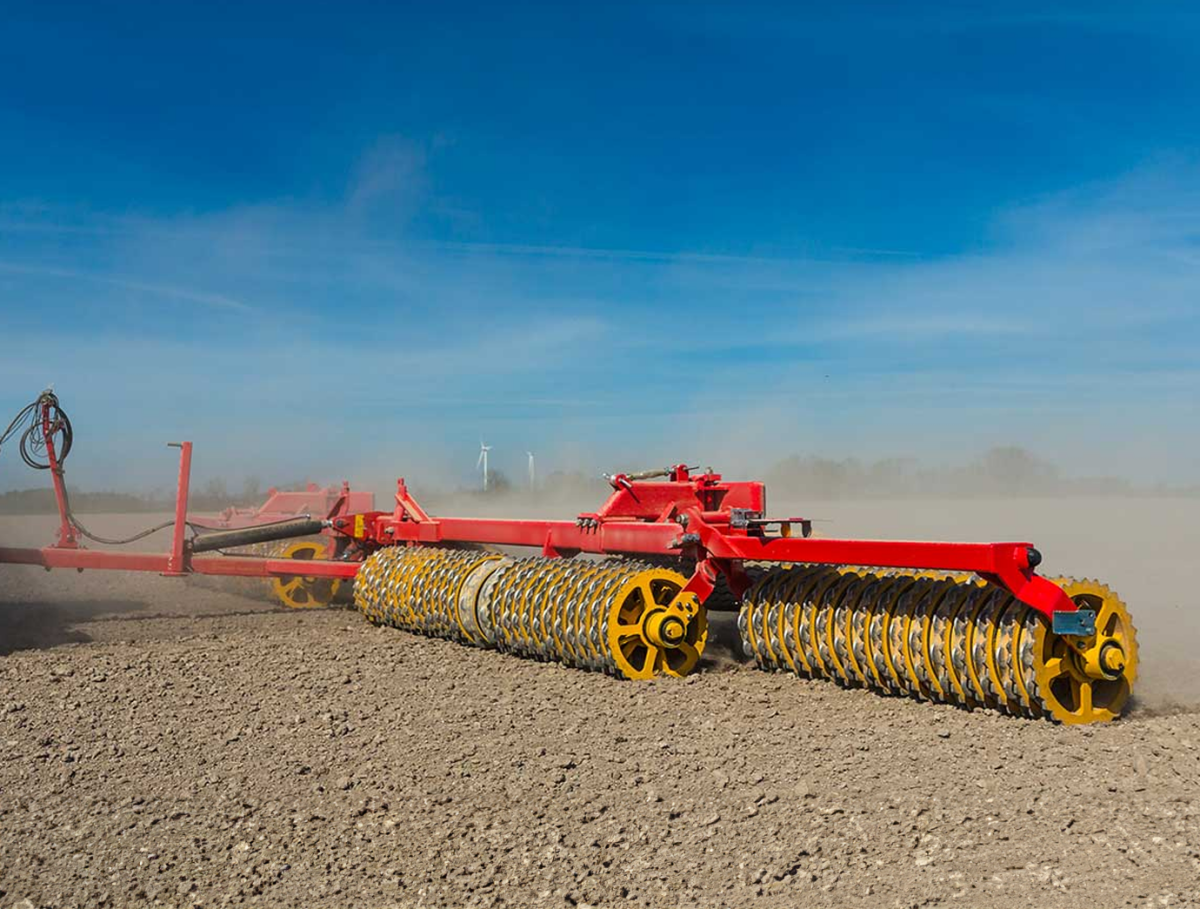

Väderstad Rexius Roller
The Väderstad Rexius 650-1230 is a heavy-duty roller, available in six different models from 6.5 to 12.3 metre working width. Rexius has a powerful frame, maintenance-free joints, hardened bushes, and high-quality roller rings, ensuring a long working life. The rollers are equipped with axles made of micro-alloyed special steel of the highest quality.
To minimise ring wear in the field, Rexius is fitted with unique spring plates between the roller sections. With a weight up to 650kg per working metre, you benefit from an improved consolidation.
Features & Benefits
The rubber suspension of the roller bearings absorbs impacts. This eliminates heavy shocks and significantly increases the working life of bearings, rings and the machines frame.
- To ensure an even load on the outer section of the wider Rexius models, a heavy-duty spring transfers weight from the neighbouring sections.
- With the standard fitted stone trays, large amounts of stones can be picked up quickly and easily.
- The folding technique of the roller lowers the centre of gravity, thereby making transport safer.
Specifications
| 650 | 820 | 940 | 1020 | 1230 | |
| Effective working width (m) | 6.5 | 8.2 | 9.4 | 10.2 | 12.3 |
| Transport width (m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Number of sections | 3 | 5 | 5 | 5 | 5 |
| Recommended working speed (km/h) | 12 | 12 | 12 | 12 | 12 |
| Draught requirements from (hp) | 70 | 90 | 100 | 110 | 120 |
