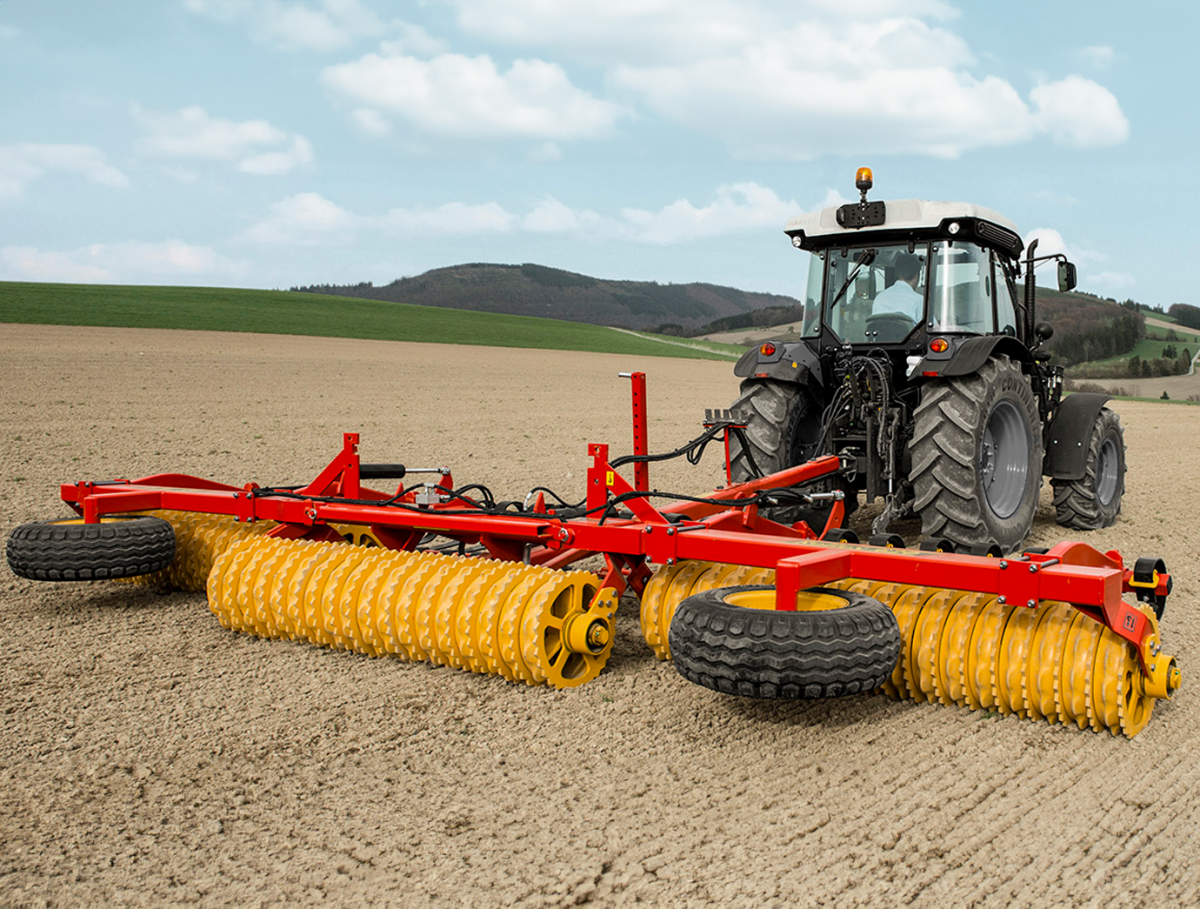

Väderstad Rollex Roller
The Väderstad Rollex 450-620 is a roller, available in 4.5, 5.0 or 6.2 metre working width. The rubber suspension of the roller bearings absorbs impacts. This eliminates heavy shocks and significantly increases the working life of bearings, rings and the machines frame. The bearings are double sealed to prevent dust from entering.
By combining versatility with high quality and productivity, Rollex has become a popular concept. You benefit from high quality design and perfect working results on the field.
Features & Benefits
Rollex has a strong frame, maintenance-free joints, hardened bushes and high-quality roller rings, ensuring a long working life.
- The roller sections pivot at the end of each section. This ensures stones are effectively pressed down, without compromising the levelling result.
- To minimise ring wear in the field, Rollex is fitted with unique spring plates between the roller sections.
- With CrossBoard Heavy, clods are crushed, and the soil is levelled. A double acting stabilising bar increases levelling capacity.
Specifications
| 450 | 510 | 620 | |
| Effective working width (m) | 4.5 | 5.1 | 6.2 |
| Transport width (m) | 2.3 | 2.8 | 2.8 |
| Number of sections | 3 | 3 | 3 |
| Recommended working speed (km/h) | 10 | 10 | 10 |
| Draught requirements from (hp) | 55 | 60 | 70 |
