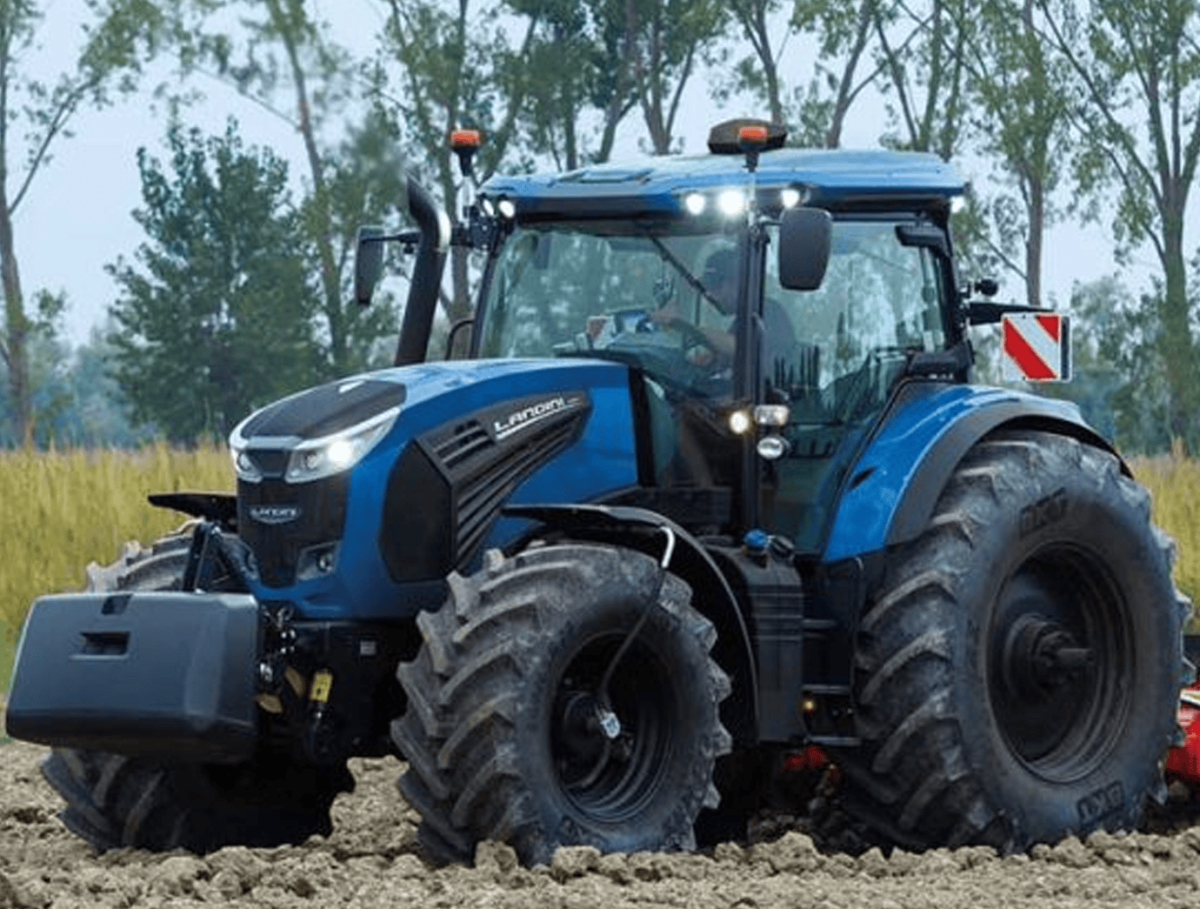

Landini Series 7 RS Stage V Tractor
The new Series 7 Stage V tractors are designed to satisfy the most exacting needs of modern farms and agricultural contractors. Inspired by the automotive design, the new tractor range has been restyled with a more dynamic look and high-quality fit and finish and offers a spacious cab with ergonomically arranged, intuitive controls for maximum comfort and ease of operation. The cab roof has been fully redesigned and the 12 work lights have been repositioned to provide full all-round visibility for night-time operation. The hood has also been reshaped to enhance visibility to the front.
Features & Benefits
High performance, fuel efficiency, smooth driving and safety are the strong points of the Robo-Six transmission. The key features of this transmission include five speed ranges, a six-speed on-the-go powershift, a robotized range shifting and an electrohydraulic steering column power shuttle. The Robo-Six transmission offers 30 forward and 15 reverse speeds. The roof of the Lounge cab has been completely redesigned to increase the number of work lights. Now 12 work lights provide perfect all-round illumination for improved visibility during night-time work.
- Series 7 Stage V tractors feature a closed-centre hydraulic system with variable- displacement pump. This means that the pump always delivers exactly the quantity of oil that the system requires, thereby eliminating unnecessary power waste. The system supplies up to 160 l/min to the hitch and remote valves, allowing for simultaneous operation of all hydraulic functions. The hydraulic system also includes a steering pump with 44 l/min flow rate.
- The new Series 7 tractors are equipped with the Dual Power system, which automatically increases power available when the PTO is operational. This enables the engine to maintain a constant power as the load varies, allowing optimum use of the PTO for enhanced tractor performance and productivity.
- The Series 7 Stage V tractors feature a rugged chassis with shock absorbing rubber mounts which support the engine helping isolate both cab and transmission from vibrations.
Specifications
| 7-200 RS STV | 7-210 RS STV | 7-230 RS STV | |
| Rated power (hp) | 175 | 194 | 205 |
| Max power (hp) | 180 | 200 | 215 |
| Maximum torque at 1400rpm (Nm) | 756 | 840 | 904 |
| Transmission type | Robo-Six - 6 powershift speeds and 5 ranges | Robo-Six - 6 powershift speeds and 5 ranges | Robo-Six - 6 powershift speeds and 5 ranges |
| Max lifting capacity at hitch couplers (kg) | 6400 | 6400 | 6400 |
| Gross vehicle weight (kg) | 13000 | 13000 | 13000 |
