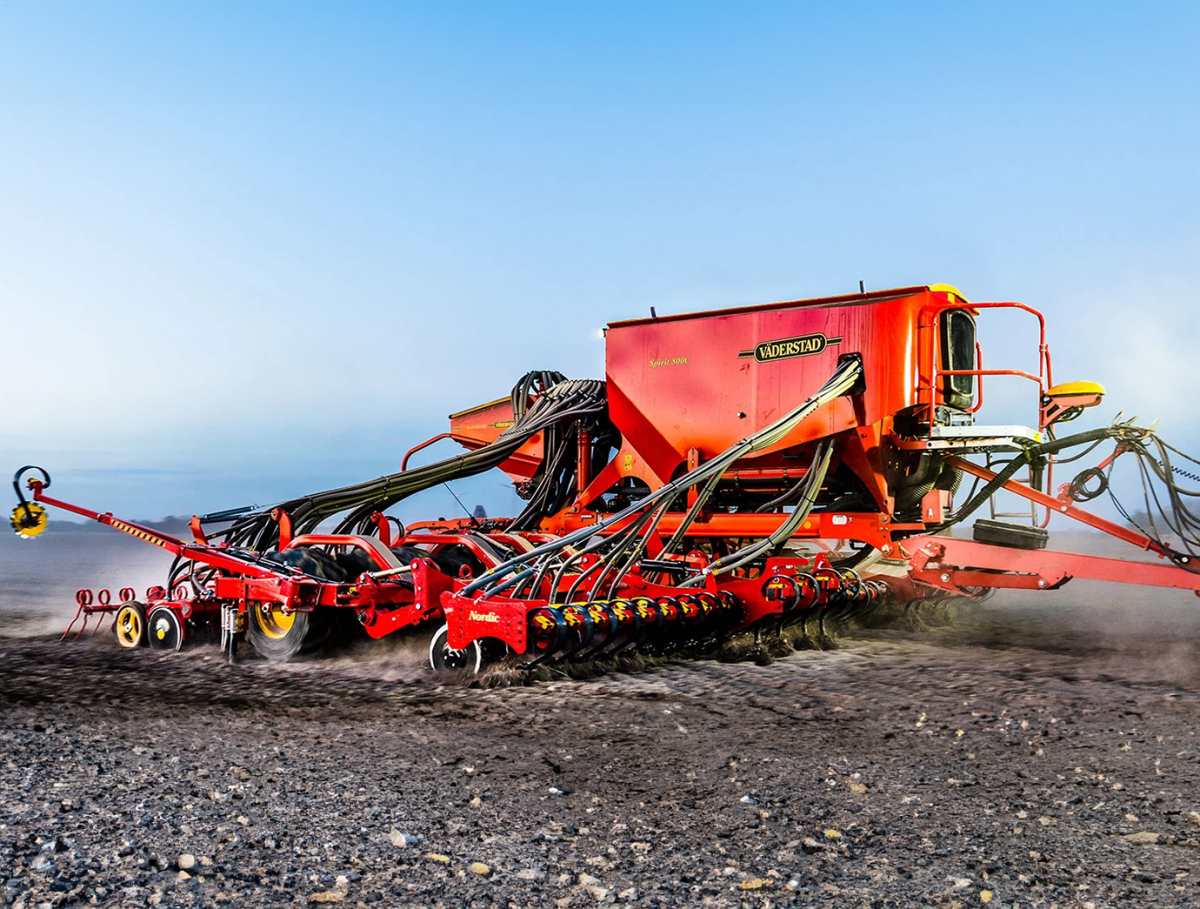

Väderstad Spirit 600-900C Seed Drill
Spirit 600-900C is a pneumatic seed drill for both seed and fertiliser, available in 6, 8 or 9 metre working widths. The 5000-litre hopper with large opening, result in fewer fills. Both the fertiliser and seed metering have impressive capacity. Spirit 600-900C is equipped with innovative solutions that increases the precision and simplifies the operations at the farm.
The pneumatic seed drill Spirit carries out levelling, seedbed preparation, reconsolidation, seeding and pressing in one pass. It is known to provide impressive precision at high working speeds on the field.
Features & Benefits
Spirit 600-900C is equipped with two Fenix II metering systems that provides a constant and reliable seed metering. The strong motor permits high seed rates at high speed. Due to the high location of the integrated fan, the dust intake is minimised, thereby increasing drilling accuracy.
- The FIX-version have fertiliser coulters mounted in the front tool, eliminating an additional power requirement. The fertiliser is placed in 5cm wide strips at 125mm row spacing, in front of every seed row. The fertiliser depth can be adjusted from the cab according to the soil condition.
- The InLine version places a low fertiliser rate in a separate outlet together with the seed in the seed coulter, providing the plant quick nutrient uptake. By separating the seed and fertiliser transport, these two distribution systems do not interfere with each other. This enables separate high accuracy blockage monitoring.
Specifications
| 600C | 800C | 900C | |
| Working width (m) | 6.0 | 8.0 | 9.0 |
| Transport width (m) | 3.0 | 3.0 | 3.0 |
| Volume seed hopper (l) | 5000 | 5000 | 5000 |
| Number of seed coulters | 48 | 64 | 72 |
| Row spacing seed (mm) | 125 | 125 | 125 |
