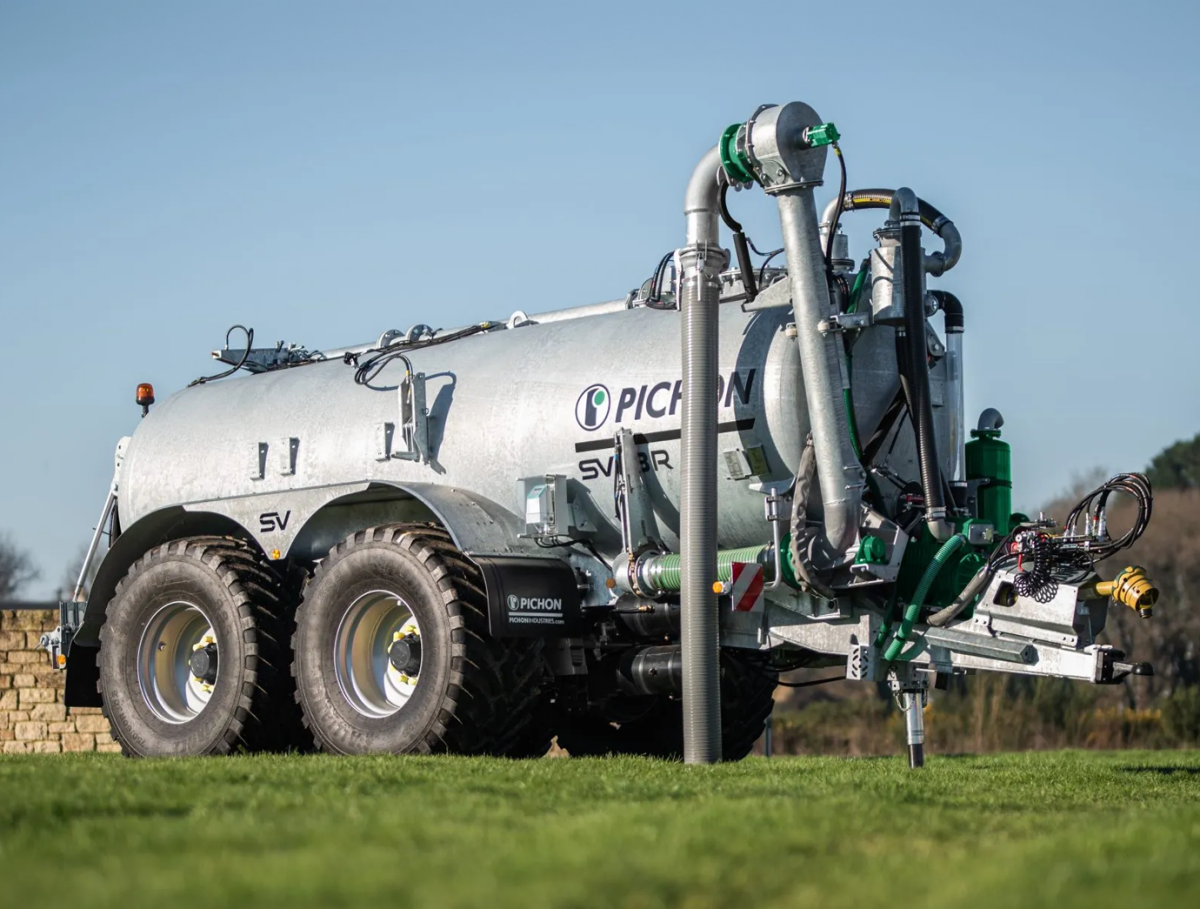

Pichon SV Slurry Tanker
The SV range was developed after in-depth reflection on our organisation. For several months, our project team composed of operators, designers, technicians, engineers, and sales representatives worked to create a range with one objective: to offer you the best!
Much more than a slurry tanker, this range offers impeccable service and responsiveness. Pre-configuration of PICHON SV models ensures a reliable machine delivered on time with an outstanding return on investment.
Features & Benefits
The SV range will meet your requirements with:
- Numerous pre-equipment included on the tank as standard.
- Centre of gravity lowered for better stability.
- Interior and exterior galvanisation.
- Optimised maximum GVW (28 tonnes).
- Flexible filling solutions: BP2 Auto filler, Plunger and Turret.
- Several external filling solutions (Ø600 or Ø400 mm opening).
- Scalable unloading pipe to complete the most demanding spreading tasks – Flexible spreading solutions: drip hoses, incorporators, and injectors.
- iControl: new control system.
Specifications
| SV12R | SV15R | SV16 | SV18R | SV20R | |
| Length (mm) | 8200 | 9100 | 9000 | 9700 | 9700 |
| Tank diameter (mm) | 1700 | 1800 | 1800 | 1900 | 2000 |
| Max height (mm) | 3823 | 4000 | 4100 | 4000 | 4000 |
| Width including tyres (mm) | 2950 to 2985 | 2980-3000 | 2850-2900 | 2985 | 2985 |
| Track (mm) | 2150 | 2200 | 2150 | 2200 | 2200 |
| Min/Max tare weight excluding devices (t) | 6.2-7.0 | 8.5-10 | 8-10.5 | 10.5-12 | 12-13.5 |
