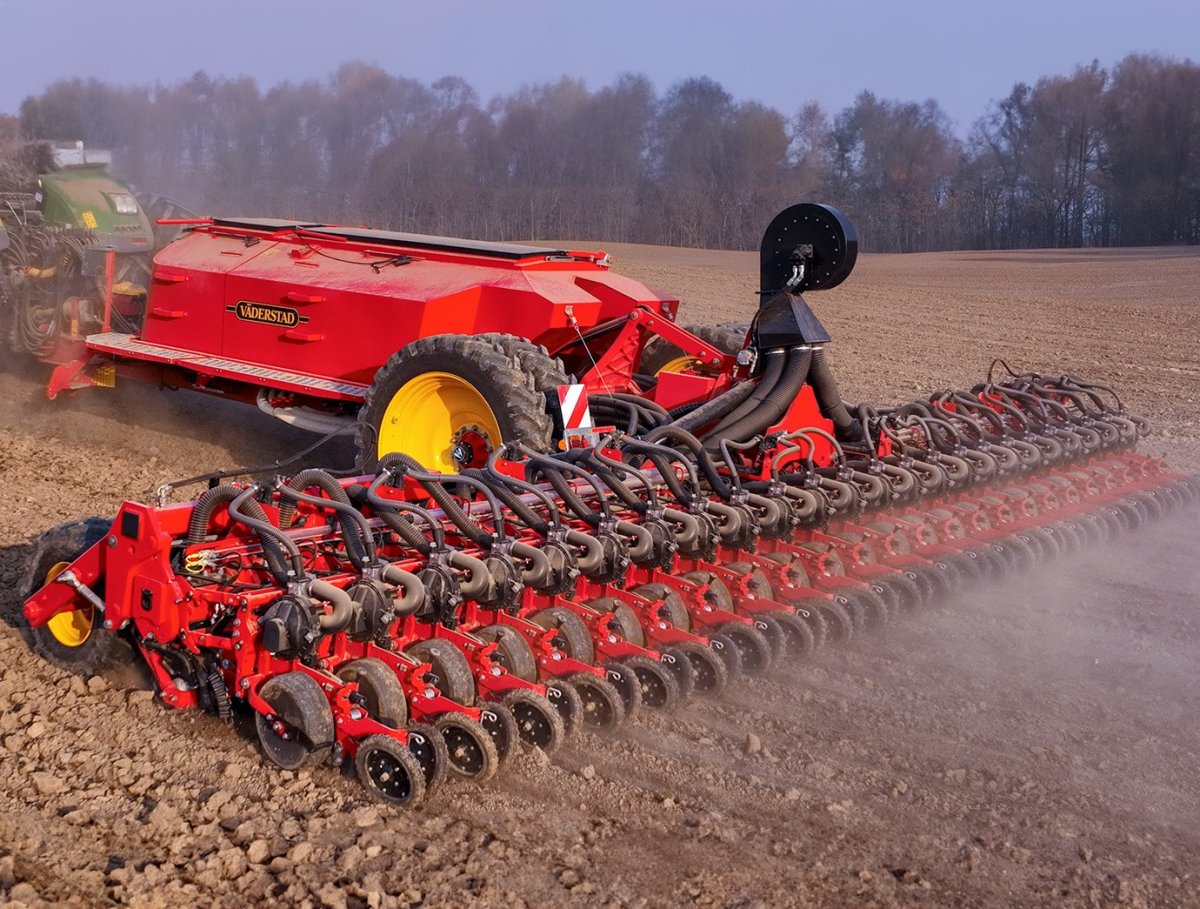

Väderstad Tempo L 8-32 Central Fill Precision Planter
Tempo L Central Fill is available with 8, 10, 12, 16, 18, 24 or 32 row units. It is equipped with a high-capacity central seed hopper, sending out seeds to the row units. Tempo L Central Fill delivers unmatched planting capacity and precision. Additionally, it manages a full range of seeds - from small seeds like oilseed rape, to maize and high rates of soya.
Features & Benefits
The technology behind the new Väderstad Tempo Central Seed Fill system is very intuitive. There is no central motor metering out seeds - instead, each row unit regulate the number of seeds needed to assist its individual high-precision PowerShoot seed metering system.
- Underneath the central 3 000 litre seed hopper, there is a feeding system for the row units. If there is an airstream in one particular gate, that gate will pick up seeds and send it out to the row unit. Every gate supports two row units thru a divider on the wings.
- On each row unit there is a collector on top of the PowerShoot seed metering system. The collector works as a small buffer of seeds. When the collector is full of seeds the airstream in the feeding system stops, meaning that the transport of seed stops for that row unit.
- When the seed level in the collector later starts to run low, the airstream starts again making the Central Seed Fill system transport seeds to fill up the collector. This means that each row unit will call for seeds, when needed, by themselves.
Specifications
| L8 Central Fill | L10 Central Fill | L12 Central Fill | L16 Central Fill | L18 Central Fill | L24 Central Fill | L32 Central Fill | |
| Number of rows | 8 | 10 | 12 | 16 | 18 | 24 | 32 |
| Row spacing (mm) | 700 / 750 / 762 / 800 | 750 | 450 / 457 / 500 / 508 / 559 / 700 / 750 / 762 / 800 | 700 / 750 / 762 | 450 / 457 / 500 / 508 | 450 / 457 / 500 / 508 | 375 / 381 |
| Working width (m) | 5.6-6.4 | 7.5 | 8.4-9.6 | 11.2-12.2 | 9.0-9.1 | 10.8-12.2 | 12.0-12.2 |
| Transport width (m) | 3.0 | 3.0-3.4 | 3.0 | 3.0-3.4 | 3.0-3.4 | 3.0-3.4 | 3.0-3.4 |
| Volume seed hopper (l) | 3000 | 3000 | 3000 | 2200 / 3000 | 3000 | 2200 / 3000 | 3000 |
