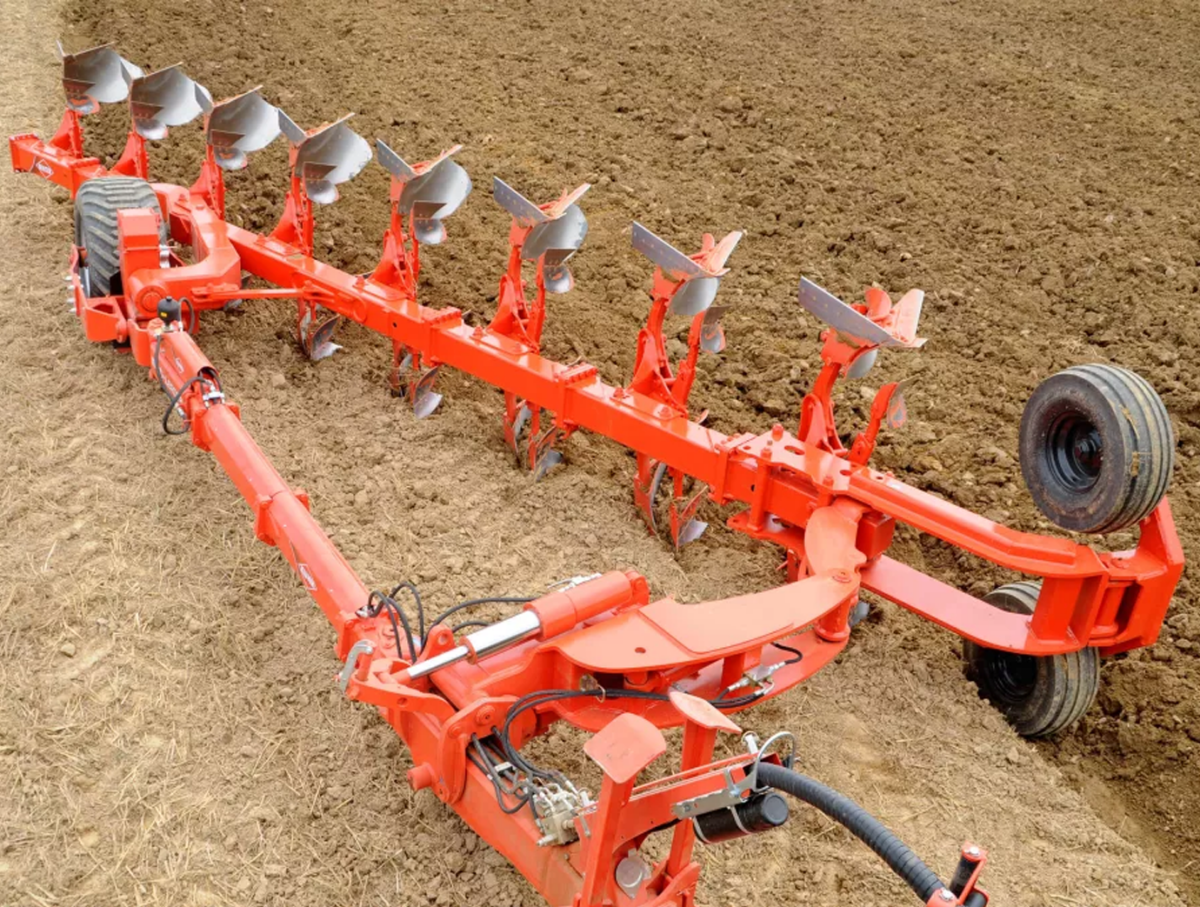

KUHN VARI-LEADER Plough
The single-wheel semi-mounted VARI-LEADER ploughs have been developed to enhance your traction power and increase your work output. You save precious time making U-turns in headlands thanks to the outstanding manoeuvrability of the VARI-LEADER range.
Simple, easy-to-access and tool-free settings allow you to achieve perfect ploughing whatever the working conditions.
The VARI-LEADER models are available from 6 to 8 bodies for tractors from 135 to 360 hp. The VARI-LEADER range perfectly meets the requirements of farms and contractors alike.
Features & Benefits
The models of the VARI-LEADER range have been designed to make your work easier:
- The turning radius of 110° allows the reduced size headlands to be created.
- A significant distance between the stem and the first point allows you to work without risk of tractor damage even in the shortest U-turns. This means less fatigue and more serenity at work.
- The number of distributors to operate during U-turns is reduced thanks to a hydraulic sequence fitted as standard throughout the range.
- Optimal comfort thanks to a gradual U turn. U-turns are done smoothly by two single-acting telescopic cylinders. Pressure on the lift arms of the tractor is reduced.
- The design and dimensions of the VARI-LEADER range meets the most severe intensities.
Designed for tractors from 135 to 360 hp, this model has a beam of 180 x 180 mm
which gives it a great robustness. - The variable width linkage is fully integrated into the beam, where it is protected from external interference. The VARI-LEADER is the only single-wheeled plough on the market with the linkage integrated into the "Z" of the beam (patented KUHN system)!
Specifications
| VL 6E NSH | VL 7E NSH | VL 8 NSH | |
| Composition of bodies (front + rear) | 1+4+1 | 1+1+4+1 | 1+1+1+4+1 |
| Minimum allowable power (hp) | 135 | 158 | 180 |
| Working width (cm) | 35-55 | 35-55 | 35-55 |
| Point to point clearance (cm) | 102 | 102 | 102 |
| Approx. weight (kg) for NSH version | 3850 | 4265 | 4660 |
