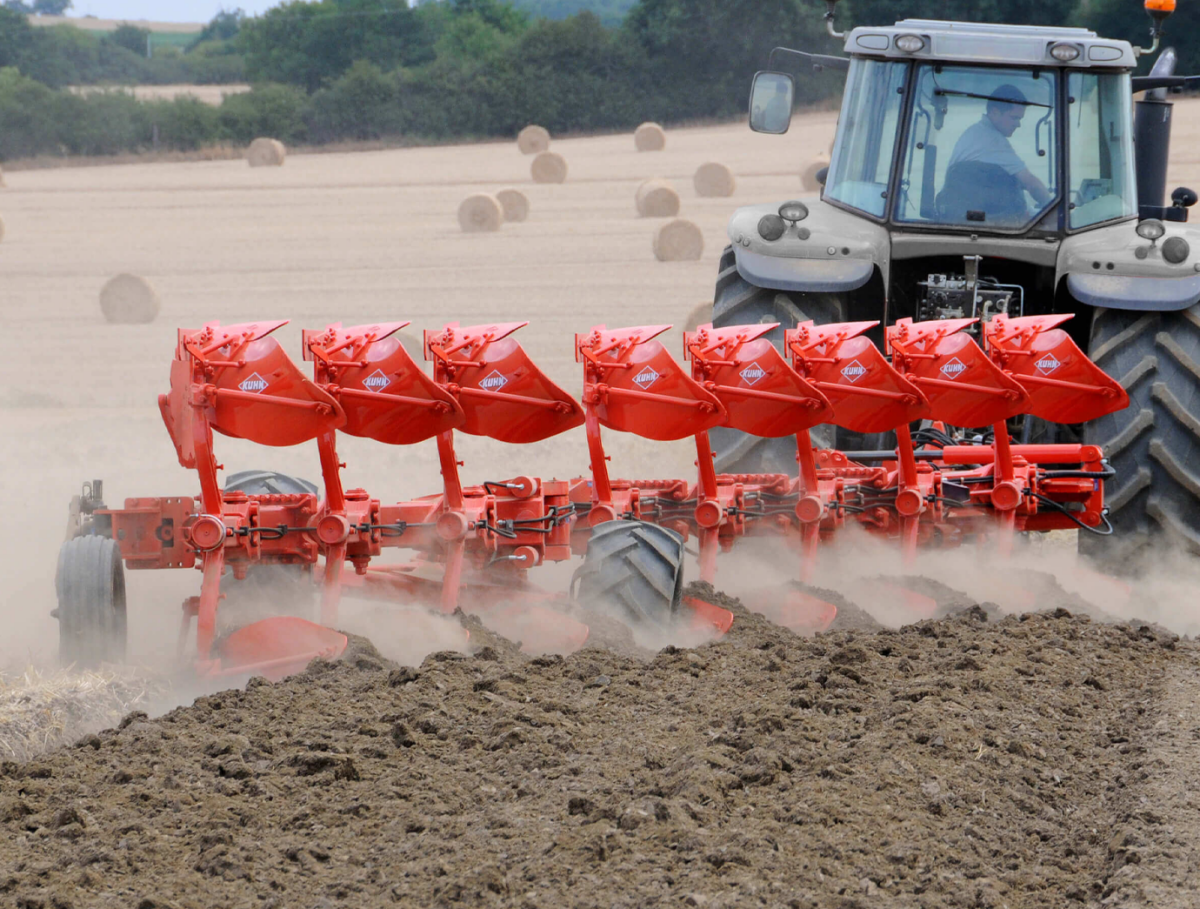

KUHN VARI-MANAGER Plough
The VARI-MANAGER semi-mounted plough range is suitable for medium-power tractors with a larger number of bodies than a mounted plough.
Its manoeuvrability, with its 110° turning angle, makes it possible to plough in the smallest fields whilst still retaining high work outputs. It perfectly meets the requirements of farmers who are looking for simplicity, exceptional quality work and versatility, high work rates and variable width for adaptation to all conditions.
The VARI-MANAGER range is available from 5 to 8 bodies to equip tractors from 150 to 240 hp.
Features & Benefits
Investing in a VARI-MANAGER semi-mounted plough is the assurance of a profitable investment for your farm. The ultra-robust design and the quality of the materials used offer the VARI-MANAGER maximum durability.
- VARI-MANAGER semi-mounted ploughs differ from others with their ease of use. The turnover is done by a hydraulic sequence. A single double acting spool automatically controls the lifting of the beam before the turnover, making manoeuvres very simple.
- The VARI-MANAGER range is available with up to 8 bodies. Because of their number of bodies, VARI-MANAGER semi-mounted ploughs ensure a high work rate.
- One of the main advantages of the VARI-MANAGER semi-mounted plough is its low weight. Depending on conditions, only 20 horsepower per body is required to work efficiently with the VARI-MANAGER. This light weight is beneficial for your soils as it limits the compaction effect.
Specifications
| VM 5E NSH | VM 6E NSH | VM 7E NSH | VM 8 NSH | |
| Composition of bodies (front + rear) | 3+2 | (3+1)+2 | (3+1)+(2+1) | (3+1+1)+(2+1) |
| Maximum tractor power (hp) | 149 | 176 | 209 | 239 |
| Working width (cm) | 30-50 | 30-50 | 30-50 | 30-50 |
| Point to point clearance (cm) | 102 | 102 | 102 | 102 |
| Approx. weight (kg) for NSH version | 3150 | 3500 | 3850 | 4200 |
