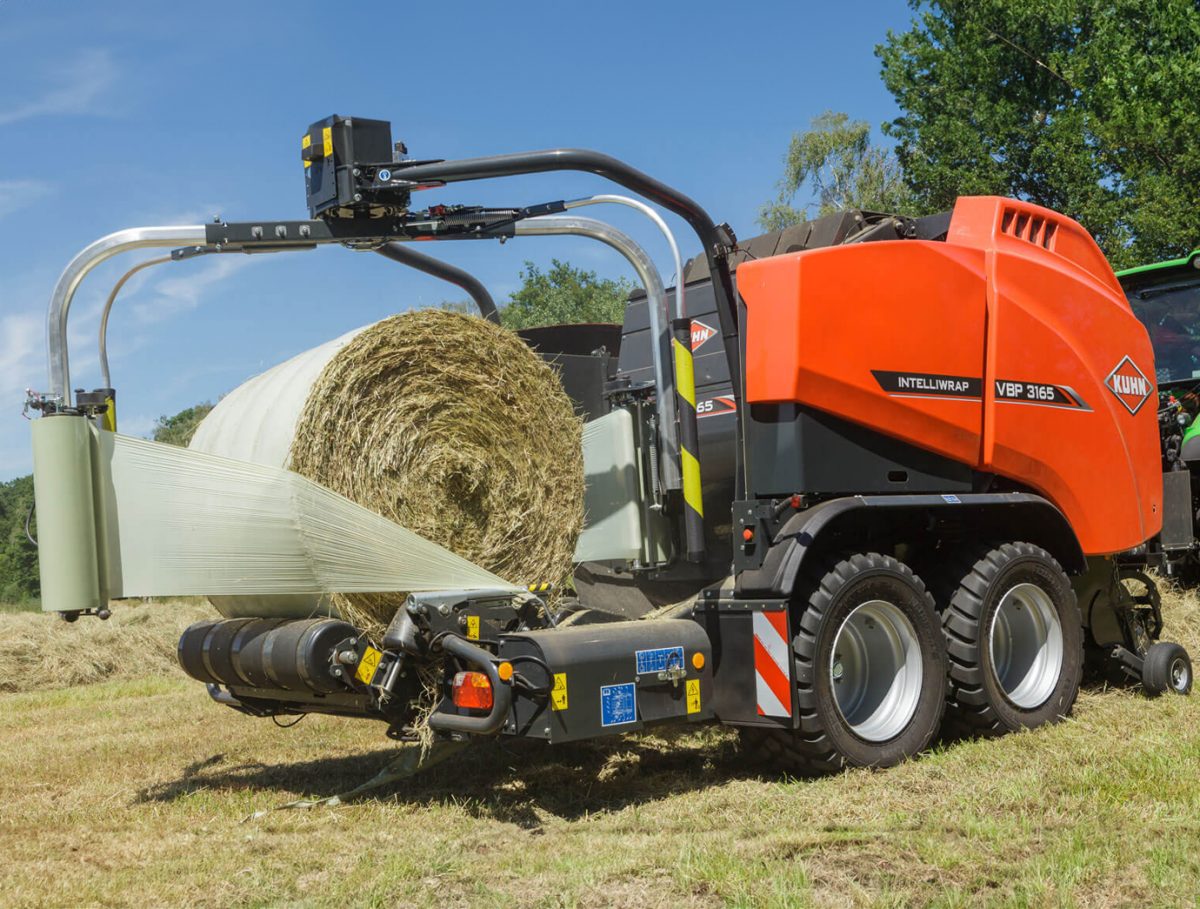

KUHN VBP 3100 Bale Wrapper Combination
Two technologies from KUHN are combined into one machine to create the VBP 3100 Series.
These machines begin with a standard VB 3165 or VB 3195 variable chamber baler with an OptiCut integral rotor and unites it with an innovative wrapper system. The VBP 3165 and 3195 feature multiple in-cab controlled functions and are designed to work in the heaviest conditions.
Fast and reliable bale transfer, combined with a high-speed, twin-satellite wrapping unit equipped with IntelliWrap, gives the KUHN VBP BalePacks the capacity to achieve a generous amount of bales per hour.
Features & Benefits
The VBP 3100 produces tightly wrapped bales, providing maximum efficiency and prolonged silage quality preservation.
- Patented Integral Rotor Technology guarantees an enormous throughput capacity.
- The Progressive Density system increases tension as the bale forms, providing a firm bale with a tough outer shell.
- KUHN’s 3D wrapping distributes the total film quantity more uniformly and efficiently across the entire surface of the bale.
Specifications
| 3165 OC | 3195 OC | |
| Bale diameter (cm) | 80 – 160 | 80 - 185 |
| Bale chamber | 5 endless belts – in cab chamber pressure setting | 5 endless belts – in cab chamber pressure setting |
| Transport width (cm) | 299 | 299 |
| Bale Width | 120 | 120 |
| Pick-up width (cm) | 230 | 230 |
