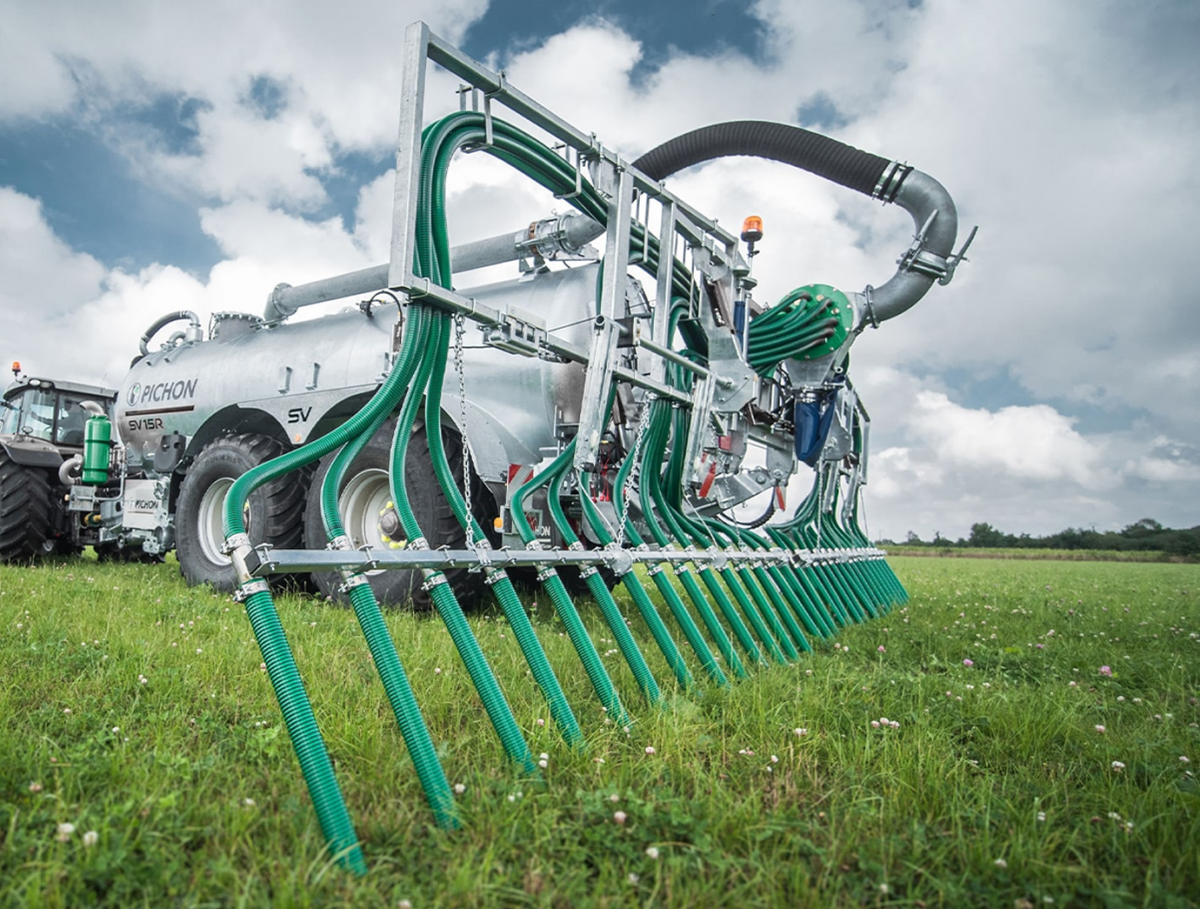

Pichon Drip Hose Booms
Using a drip hose boom (dribble bar) enables you to properly apply slurry onto the soil surface, increasing nitrogen’s efficiency. Spreading the slurry as close as possible to the crop base significantly reduces odour. Spreading liquid organic fertiliser on growing crops at maximum working widths is now possible thanks to our range of standard and telescopic booms.
Placing the hose ends against the ground surface guarantees better nitrogen use and prevents your crops from getting dirty. The small distance between each hose allows a very uniform volume to be spread over the entire width. Using a drip hose boom significantly reduces nitrogen loss through volatilisation.
Features & Benefits
The drip hose booms will meet your requirements with:
- Fully galvanised structure
- Respect of soil structure
- Spreading on growing crops
- Reduced nitrogen loss
- Maximum value out of organic fertiliser
- Minimum odour
- Even transverse distribution
- Uniform volume spread on the soil surface
Specifications
| 9m | 12m | 12/15m | 15m | 15/18m | 18m | |
| Working width (m) | 9 | 12 | 12/15 | 15 | 15/18 | 18 |
| Number of outlets | 30 | 40 | 48 | 48 | 48 | 48 |
| Hose diameter | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | 50 |
| Number of macerator(s) | 1 | 1 | 2 | 1 | 2 | 1 |
| Space between hoses (cm) | 31 | 30 | 32/39 | 32 | 38/41 | 38 |
