KUHN FC 1015 Disc Mower Conditioner

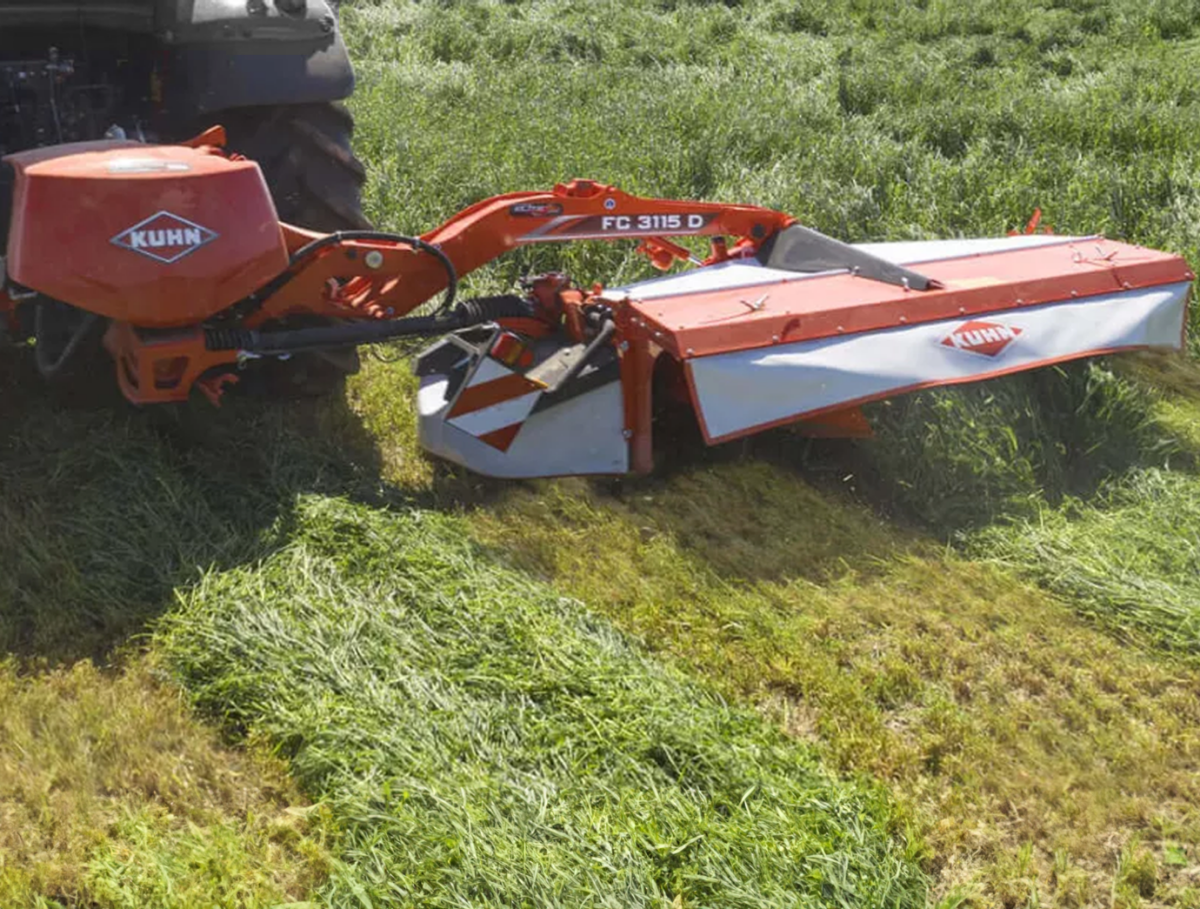

KUHN's mounted mower conditioners; FC 3115 D and FC 3515 D, for the first time combine; conditioner, LIFT-CONTROL suspension kinematics and vertical folding!
These complementary models offer a working width of 3.10m and 3,50m. Intended for forage operations or contractors, they can be combined with a front mower for increased work output.
With the exclusive LIFT-CONTROL suspension system combined with NON-STOP safety, these mower conditioners maintain constant ground following which is easily adaptable to the conditions.
Features & Benefits
The machines are equipped with the maintenance free OPTIDISC ELITE cutter bar featuring its latest upgrades and the FAST-FIT quick release knife system.
- The mowing unit folds 126° to obtain maximum compactness for transport and an optimal balance on the tractor rear wheels.
- Variable spacing between discs, large overlap zones and the reduced mowing angle will provide you with the quality you need.
- In the event of a very violent impact, pre-defined shearing grooves protect the tooth wheels and ensures the machine is quickly (within 15 minutes) back up and running at a low repair cost.
Specifications
| FC3115 D | FC3515 D | |
| Working width (m) | 3.10 | 3.50 |
| Transport height (m) | 3.43 | 3.79 |
| Number of disks | 7 | 8 |
| Average swath width (m) | 1.45 – 2.10 | 1.85 – 2.40 |
| PTO speed (rpm) | 1000 | 1000 |
