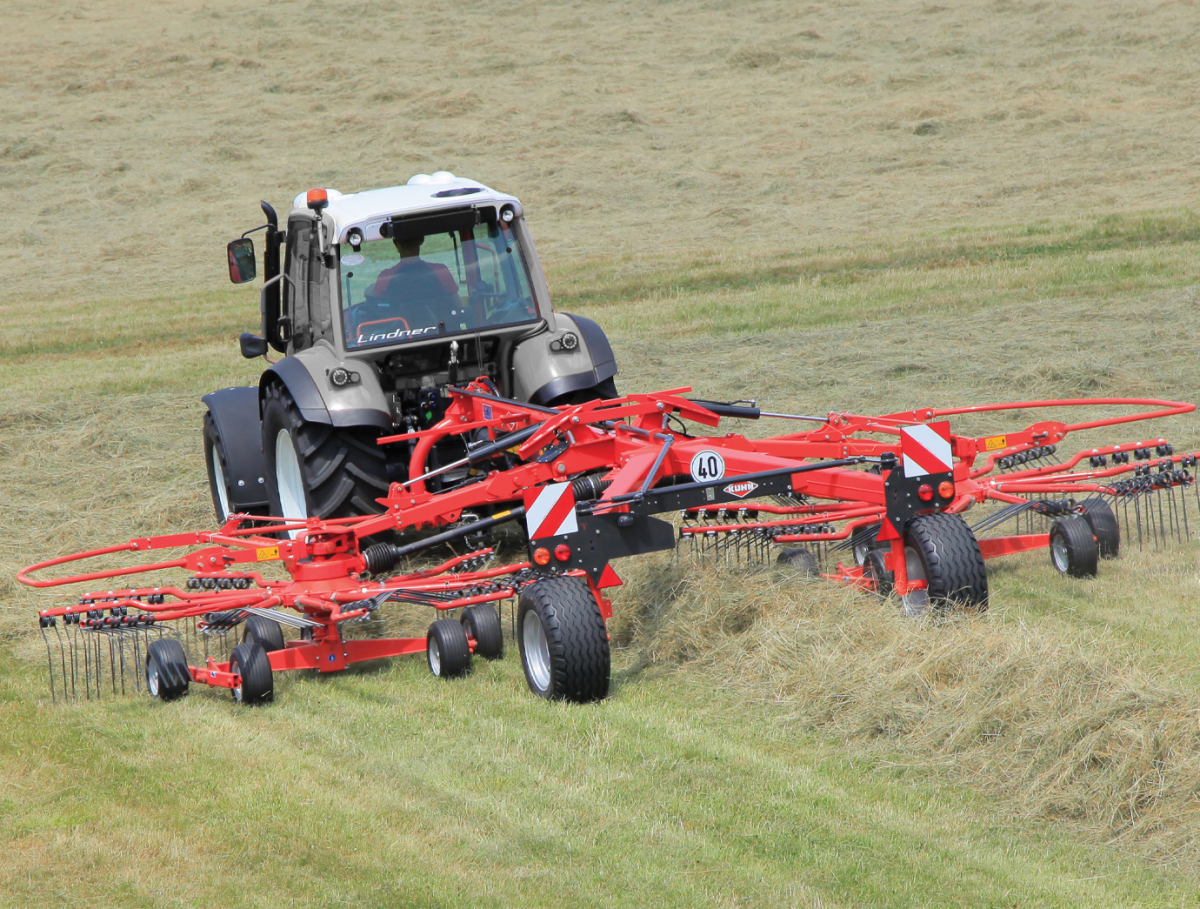

KUHN GA 6501 - 7501+ Semi-mounted Gyrorakes
Single rotor rakes are pushed to their limits on farms with continuously increasing grassland areas. That's why a twin rotor machine with higher output and just as compact as a single rotor rake is exactly what you need. GA 6501 and 7501+ rakes meet these expectations. They have double-curved hyper-tangential mounted tine arms that produce high-quality raking and perfect swath formation for fast forage drying. These rakes include all the features of a professional rake while being great value for money and highly manoeuvrable.
Features & Benefits
The GA 6501 and GA 7501 + have less than 2.55 m in transport position - travel with ease on roads or when entering narrow fields with the GA 6501 and 7501 + thanks to their transport width: 2.50 m and 2.55 m width respectively, their directional transport wheels (optional on GA 6501) and their pivoting headstock with a significant travel range.
- The rotors are capable of gently contouring uneven ground without damaging grass stubble. They are equipped with a highly effective 3D rotor suspension system.
- The rotor wheels are positioned close to the tines to provide optimised ground contouring on uneven plots. These features prevent impurities from contaminating the forage.
- The swath width is adjusted with a 4-position handle. In standard configuration with a working width of 6.90 m to 7.40 m, the swaths width is between 1.30 m and 1.90 m. The machine can be configured in a narrow version for a reduced working width of 6.70 to 7.20 m and a reduced swath width. This configuration also meets the requirements of road constraints with a transport height of 4 m without disassembling the tine arms.
Specifications
| GA 6501 | GA 7501+ | |
| Working width (m) | 5.65-6.40 | 6.70-7.40 |
| Average windrow width (m) | 1.25-2.00 | 1.10-1.90 |
| Transport width * (m) | 2.50 | 2.55-2.62 |
| Number of rotors / Rotor diameter (m) | 2 / 2.65 | 2 / 3.25 |
| Number of tine arms per rotor / Number of tines per tine arm | 10 / 3 | 11 / 4 |
