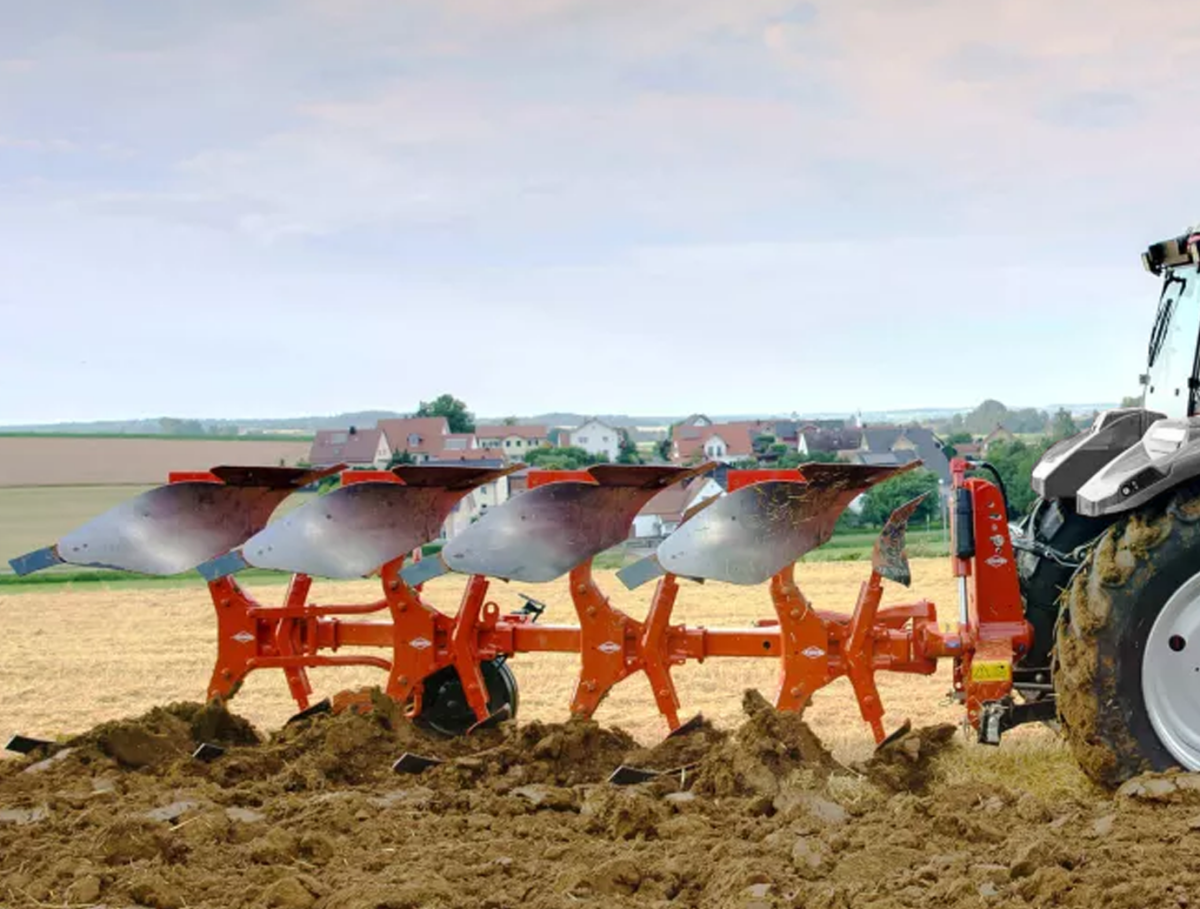

KUHN MASTER 113 Mounted Plough
The MASTER 113 range meets the needs of farmers looking for a plough combining lightness and robustness. Available from two to five bodies, this machine is suitable for tractors from 90 to 150 hp for light to medium soils.
The MASTER 113 ploughs meet your requirements through increased reliability, simple adjustments, and quality ploughing. The equipment and options available allow you to customise your MASTER 113 to best meet your needs. The MASTER 113 mounted plough brings you KUHN's expertise acquired for more than 100 years in the ploughing domain. Investing in a MASTER 113 is choosing quality to serve your profitability.
Features & Benefits
The MASTER 113 benefits from reduced weight allowing its use with small tractors. This way, you can achieve precise and clean ploughing with a 90 hp tractor equipped with a MASTER 113 four body plough. With its limited weight, the MASTER 113 means you can exploit the tractor's full power for a high work rate while limiting the compaction of your soils.
- It is very simple to handle and use the MULTI-MASTER 113 with a single spool for adjusting the offset, width of the first body and alignment of the plough. The cutting width is easily changed by rotating the three beam screws on the frame.
- When travelling on the road, there is no need to fold the MASTER 113, since it is equipped with a transport wheel. An easy-to-access pin locks the plough for secure transportation.
- As for the MASTER 113 with NSH (Non-stop Hydro-Safe safety device, it has a 70 cm under-beam clearance and a 90 cm between-body clearance thus limiting the weight at the rear.
Specifications
| MULTI-MASTER 113 3E | MULTI-MASTER 113 4 | MULTI-MASTER 113 4E | MULTI-MASTER 113 5 | |
| Maximum tractor power (hp) | 90 | 120 | 120 | 150 |
| Approx. weight (kg) for NSH version | 975 | 1215 | 1360 | 1600 |
| Working width (cm) | 35-40 & 45 | 35-40 & 45 | 35-40 & 45 | 35-40 & 45 |
| Underbeam clearance (cm) | 75 / 80 in T / 70 in NSH | 75 / 80 in T / 70 in NSH | 75 / 80 in T / 70 in NSH | 75 / 80 in T / 70 in NSH |
| Point to point clearance (cm) | 90 or 102 in T – 90 in NSH | 90 or 102 in T – 90 in NSH | 90 or 102 in T – 90 in NSH | 90 or 102 in T – 90 in NSH |
