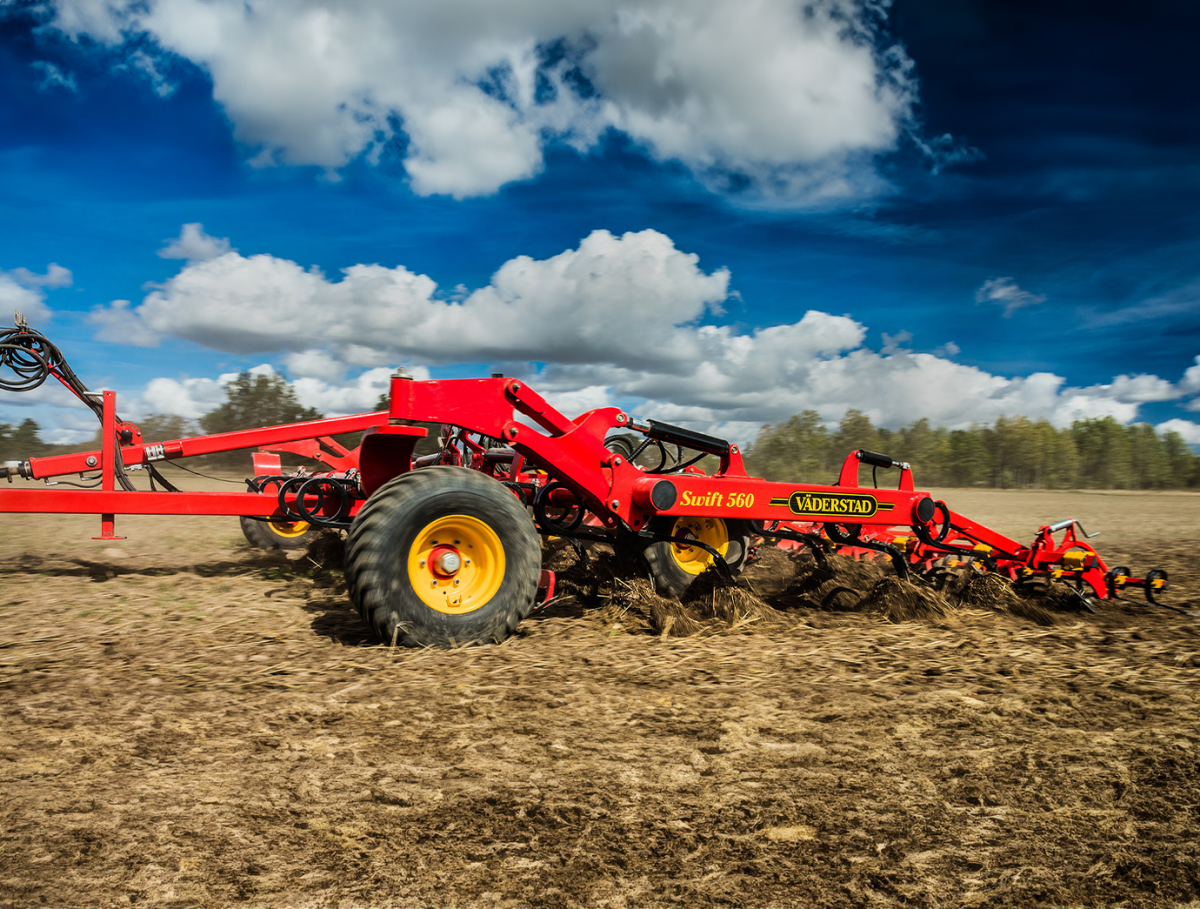

Väderstad Swift Tine Cultivator
High capacity - low draught requirement. The Väderstad Swift is a trailed tine cultivator, designed to perform at peak level in both wet and dry years. The models in the product family span from 4.0 to 8.7 metre working width.
You benefit from a spacious design, which can handle large quantities of crop residues. The narrow tine spacing resulting in an intensive mixing and even working result.
Features & Benefits
The Swift tine is unique in its strength and therefore comes with a three-year warranty.
- The Swift tines provide effective mixing down to 20cm working depth.
- Each tine axle is equipped with two tines – one in front of the axle and one behind. This construction allows for a narrow tine spacing of 19.3cm, providing intensive mixing over the entire working width.
- A large distinct scale clearly displays the working depth, which is set hydraulically from the cab on the move.
Specifications
| 400 | 440 | 560 | 640 | 720 | 870 | |
| Effective working width (m) | 4.05 | 4.44 | 5.60 | 6.36 | 7.14 | 8.69 |
| Transport width (m) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Number of tines | 21 | 23 | 29 | 33 | 37 | 45 |
| Tine spacing (cm) | 19.3 | 19.3 | 19.3 | 19.3 | 19.3 | 19.3 |
| Recommended working speed (km/h) | 10-14 | 10-14 | 10-14 | 10-14 | 10-14 | 10-14 |
