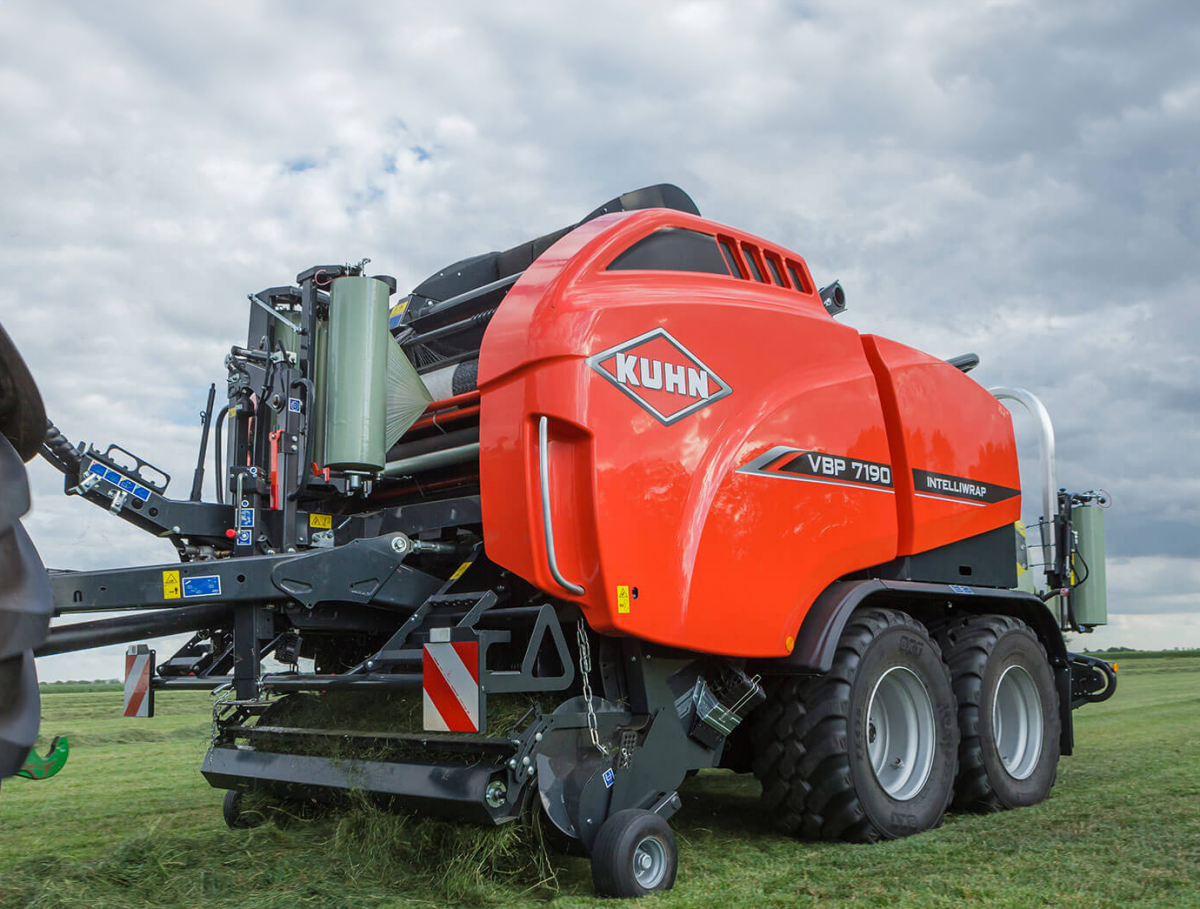

KUHN VBP 7100 Bale Wrapper Combination
The VBP 7160 and VBP 7190 stand out with their great versatility and performance in various conditions. These baler-wrapper combinations produce straw bales with the highest density on the market. But they can also handle short wet silage crops in autumn conditions, all thanks to the patented* i-DENSE density regulation system which ensures an optimal bale start and baling pressure.
The durable, heavy-duty construction ensures maximum capacity, from intake to wrapping. Combined with a reinforced BalePack frame and an extra-large tandem, the VBP 7100 series clearly show off their position in the highest tier of the combi balers league.
Features & Benefits
The heavy-duty bale chamber, rollers and drive components are a solid basis for a long lifetime of the baler.
- Intake system with up to 23 knives enables a wide range of cutting lengths.
- Wide cam-steered pick-up with heavy crop roller with a wind guard (diameter: 217 mm).
- With film binding using two regular 750 mm stretch-film rolls, the VBP 7100 series enables you to use a much higher pre-stretch ratio compared to conventional wide film binding systems providing further cost savings.
Specifications
| 7160 | 7190 | |
| Bale diameter (cm) | 80 – 160 | 80 - 185 |
| Bale chamber | 1 starter roller – 2 bale chamber rollers – 4 endless belts | 1 starter roller – 2 bale chamber rollers – 4 endless belts |
| Transport width (cm) | 299 | 299 |
| Bale Width | 120 | 120 |
| Pick-up width (cm) | 230 | 230 |
